Polyurethane Foam 75mm Coolroom Panels Wood Grain Exterior Wall Ceiling Cladding

Basic Information
Place of Origin: Wuxi, China
Brand Name: Sussman
Certification: CE, ISO9001
Model Number: SM-SP003
Minimum Order Quantity: 200m2
Price: USD7 per m2
Packaging Details: Paper package
Delivery Time: 5-8 working days
Supply Ability: 1000m2 per day
Panel Material: Metal,Polystyrene, Foil Paper Length: 3000mm/3800mm/4500mm
Weight: 3.7kg/m2 Steel Thickness: 0.27-0.6mm
Function: Sound Proof/ Waterproof/ Eco-friendly Core Material: PU
High Light:

cold room sandwich panels

,

polyurethane foam sandwich panels

16mm Decorative PU Sandwich Panel Board Wood Grain Exterior Wall Panel Polyurethane Foam Sandwich Panel



This product with easy installation and good insulation which is

applied widely in: cold store, ceiling, temporary house,dormitories,warehouse,workshop and etc.



1. Outer materails specification of Polyurethane Foam Insulated Sandwich Panels Prices

1) Two sides: painted steel sheet, stainless steel sheet and hot-galvanized steel sheet for customers' option
2) Thickness(mm): 0.32~1.5mm

3) Color: According to customer requirement, default is milk white.
4) Width: 980mm, 1180mm
5) Length:According to customer requirement,the max length is 8700mm.



2. Sandwich core: Polyurethane(PU)
Density: 38-40(kg/m3), 40-42(kg/m3), 42-45(kg/m3).
Thickness(mm): 75, 100, 120, 150, 200.



3. Fireproof:According to customer requirement

As long as it leave the fire, will extinguish itself



4. Panel inspection result:



Inspection Item Unit Technology requirement Inspection result
Density kg/m3 32~50 43
Compressing strength(10%deformation) Kpa ≥ 160 200
Bending Strength Kpa ≥ 245 331
Absorbing rate % ≤ 4 3
Heating coefficient W/mk 0.024 0.021
Average burning time(vertical) S ≤ 30 3
Average burning height(vertical) s ≤ 250 250

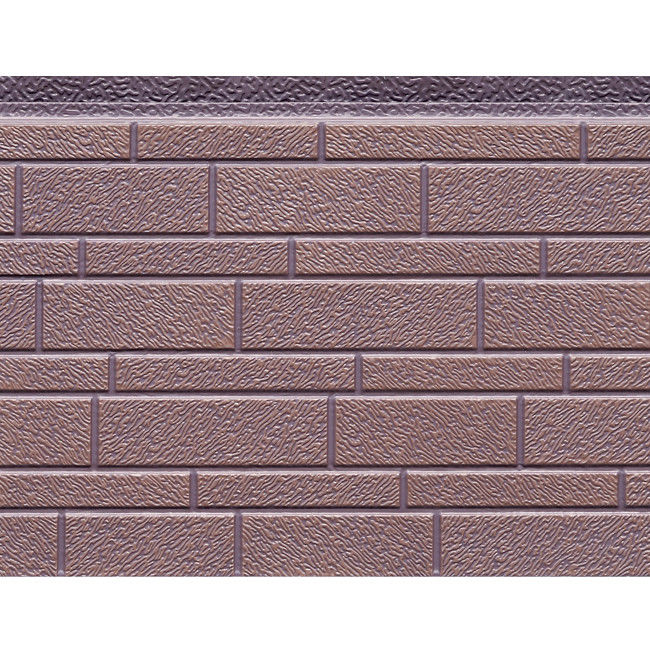

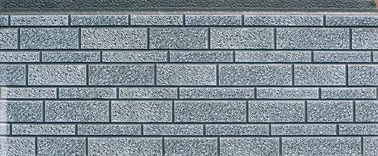

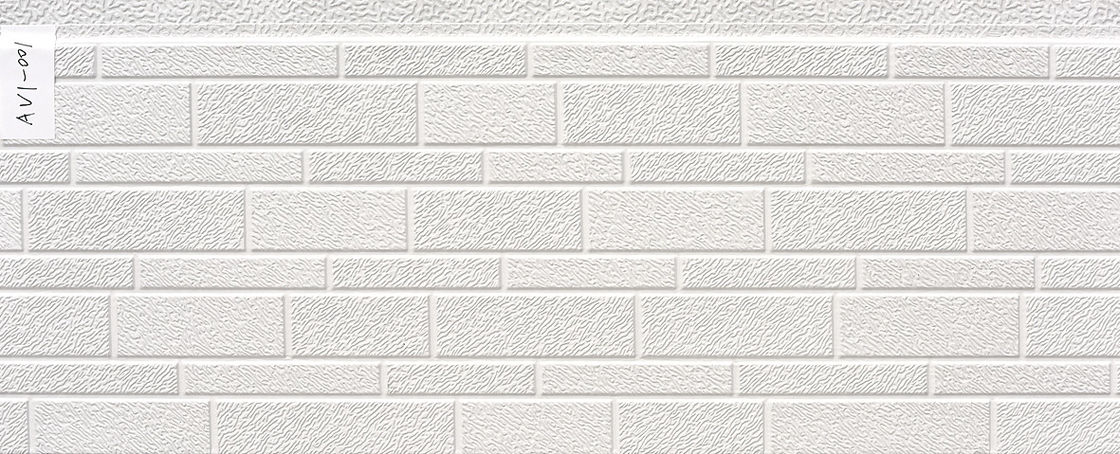

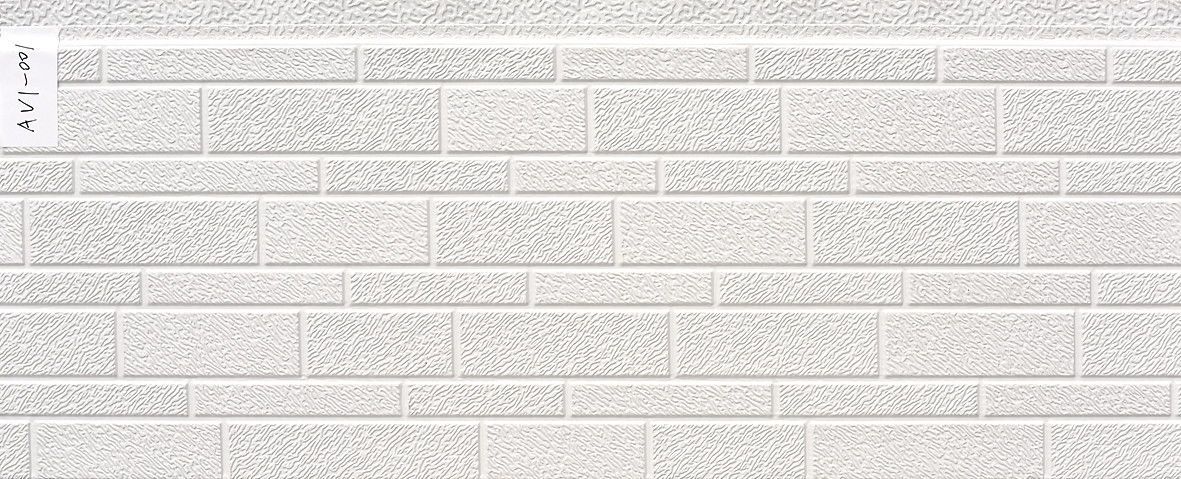

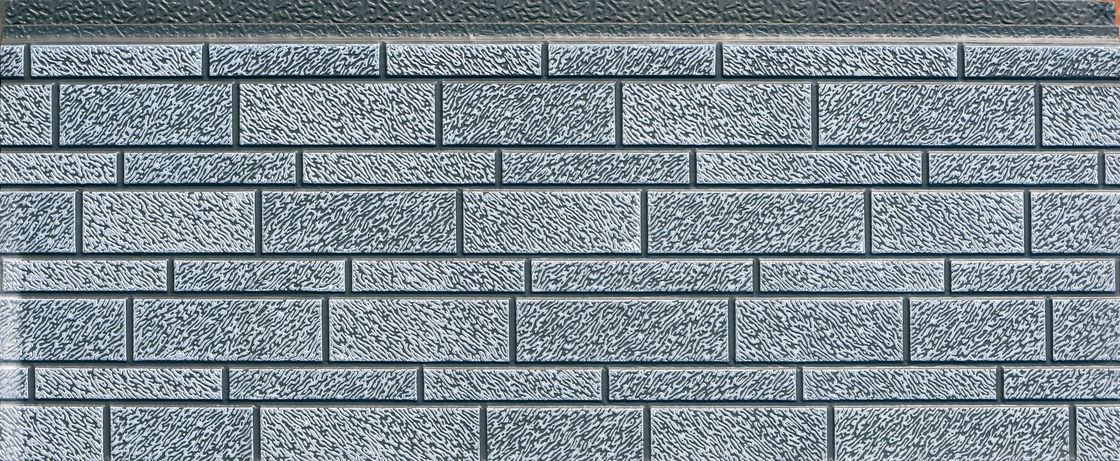

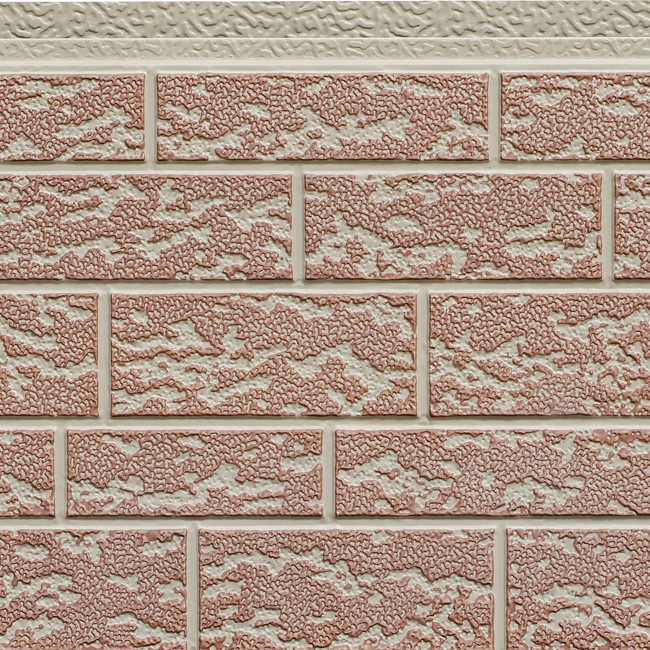

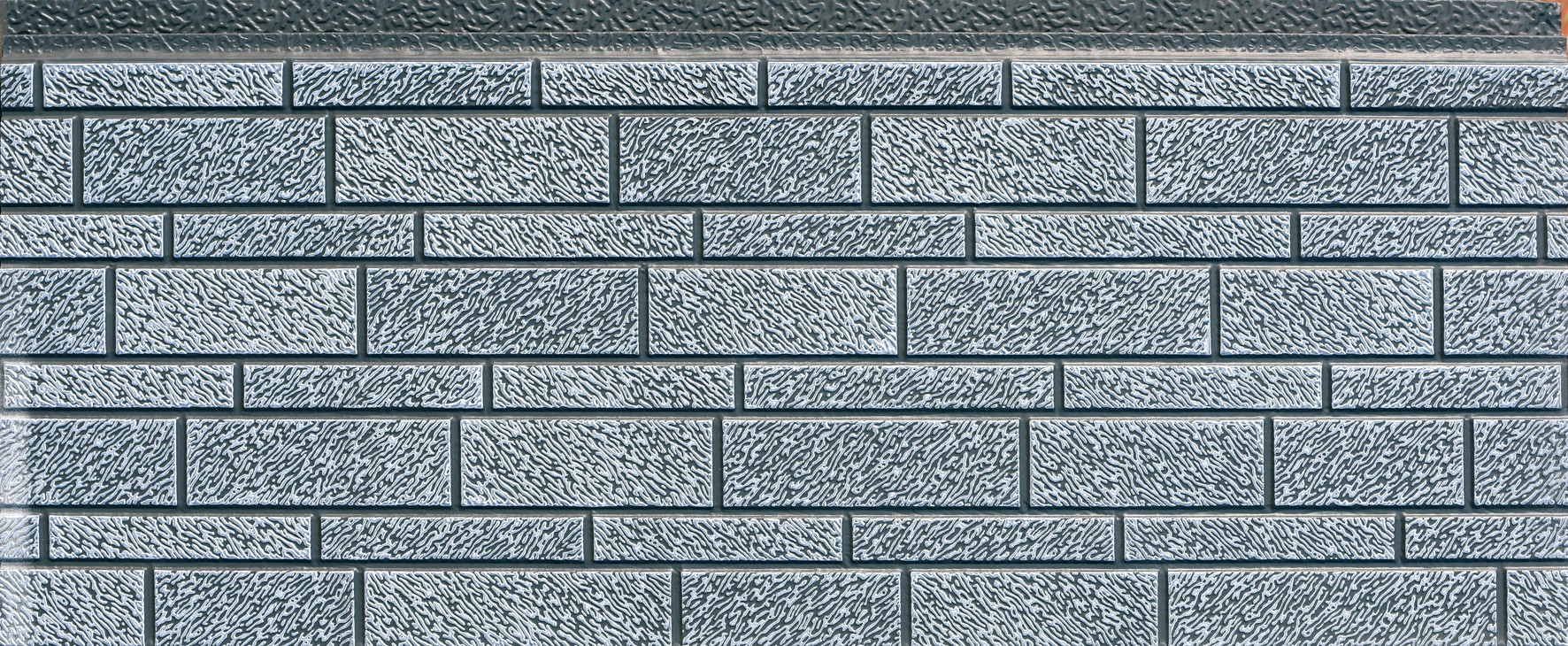

Polyurethane Foam 75mm Coolroom Panels Wood Grain Exterior Wall Ceiling Cladding 0Polyurethane Foam 75mm Coolroom Panels Wood Grain Exterior Wall Ceiling Cladding 1Polyurethane Foam 75mm Coolroom Panels Wood Grain Exterior Wall Ceiling Cladding 2
