| Place of Origin: | China |
|---|---|
| Brand Name: | Sussman |
| Certification: | CE; ISO |
| Model Number: | SU-LV |
| Minimum Order Quantity: | 50 square meters |
| Price: | USD180-USD250 per square meter |
| Packaging Details: | plastic film |
| Supply Ability: | 500 square meter per week |
| Type: | Light Gauge Steel Structure Frame Prefab House | Steel Grade: | Q235, Q345 |
|---|---|---|---|
| Drawing Plan: | Provide Custom-made Design | House Lifetime: | 30-70 Years |
| Thickness Of Panel: | 50/75/100mm Etc | Product Type: | Steel Structure |
| High Light: | steel frame prefabricated houses,mobile prefabricated houses |
||

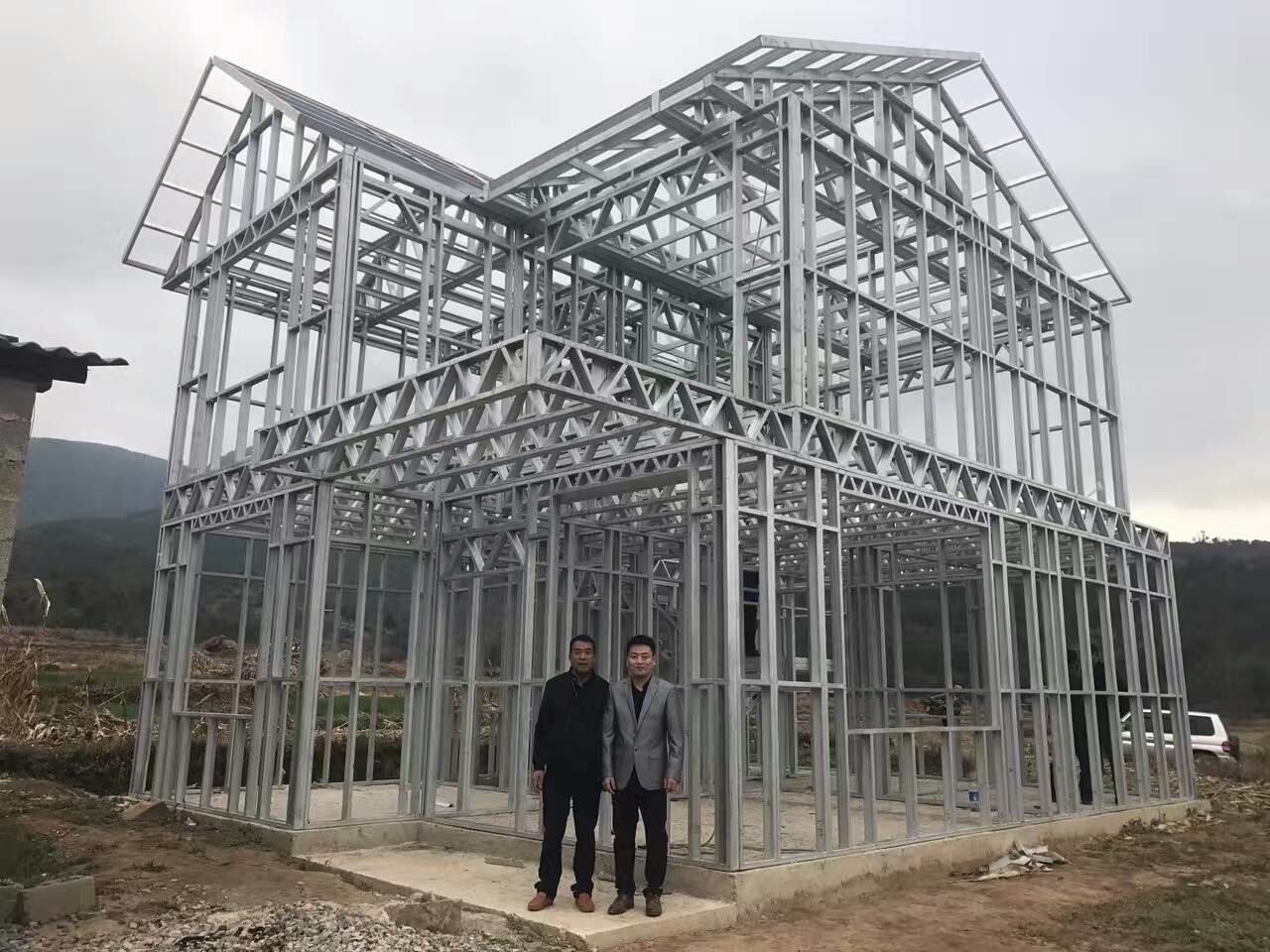

AZ150 Galvanized coils Light Steel Prefab House Villa For Residence 2-3 floors
Characteristic
1. Galvanized steel or powder coated steel work as the major part of structure which is firm and durable, it has quite good capacity to resist corruption.
2. The main material of the wall, roof is light and strong. It is produced by injected EPS, PU or rook wool between 2 steel sheets. They have quite good capacity of water proof, moisture proof and heat resistance.
3. The light steel structure with the good quality sandwich panel could resist different weather, such as typhoon, heavy rain and earthquake.
4. Almost dry construction, the assemble of light steel villa do not need much water, which is more environmental friendly than building the concrete building. More fit to the eco trend.
5. Water pipe and wires could be fixed into and be hidden into the sandwich panel which is good looking.
6. Good to design and decorate. The floor and wall could be decorated by different material according to the user’s idea.
7. Wide-range in application, it can be widely applied in Villa, vacation village, low-rise residence, hotel, Civil or Commercial Building.
| Sort | Name | Specification |
| Specification | length | (n-2)*1245+2*1300mm (n means unit, n=10,11,12…… |
| Width | Less than 12m | |
| Wall height | 2.4m~2.8m | |
| Roof slope | 20 | |
| Standard accessory | Wall board | Cement fiber sandwich panel (insulation material:polystyrene) |
| Roof board | archaized decorative color steel panel | |
| Outside door | Security door, single door with dimensions of 900*2100mm, furnished with a handle lock with 3keys. Doorframe is made of 1.2mm steel, and door is made of 0.7 mm steel, 90mm thick rock wool insulation foam. | |
| Inside door | composite wooden door | |
| Window | PVC, white color, with dimensions of 1200*1200mm or 500*500mm, glazed with glass in a thickness of 5mm, two bay fixed, and two bay sliding, supplied with fly screen. | |
| Channel | Galvanized Steel Plain Sheet press moulding Material: Q235. Painted | |
| Post,purline,roof truss | Galvanized, Material: Q235. | |
| Elevated ceiling | Ceiling of mineral wool acoustic panel in room and aluminium panel in bathroom and kitchen | |
| Option | Decorative floor | PVC, laminated or ceramic tile |
| Drainage system,electric system | Provided plan, design and construction | |
| Technical parameter | Bearing load | 0.5KN/M2, can be adjusted according to climate |
| Wind pressure: | 0.45KN/M2, can be adjusted according to climate | |
| The resistant earthquake grade | 7fission activate |
Advantage
1. Convenient to assemble and disassemble.
2. Quick installation.
3. Almost dry construction which is environmental friendly.
4. Light and reliable, the steel structure is strong and firm.
5. Nice capacity of water proof, moisture proof and heat insulation and sound insulation.
6. Practical, good space utilization and high price performance.
7. Long life span capacity which could be reach over 30years.
