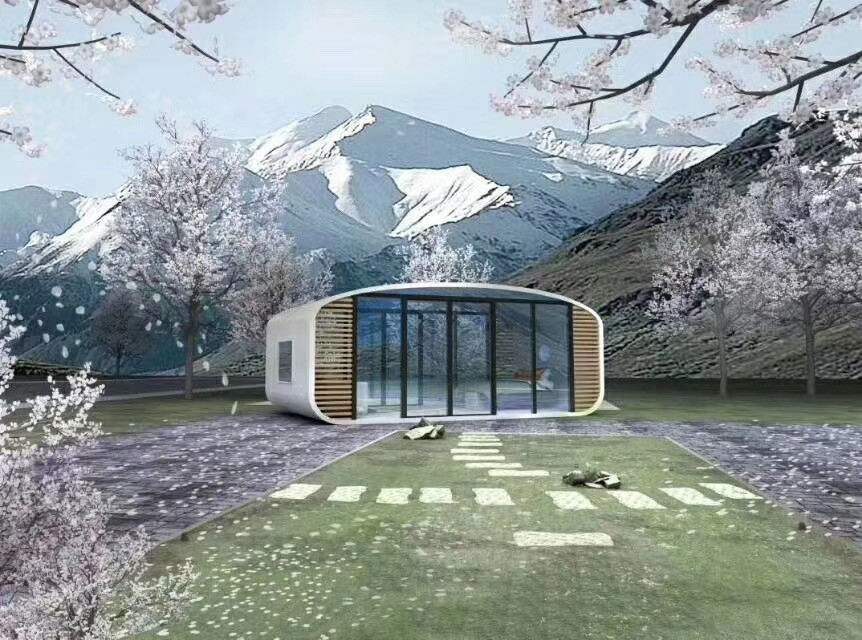

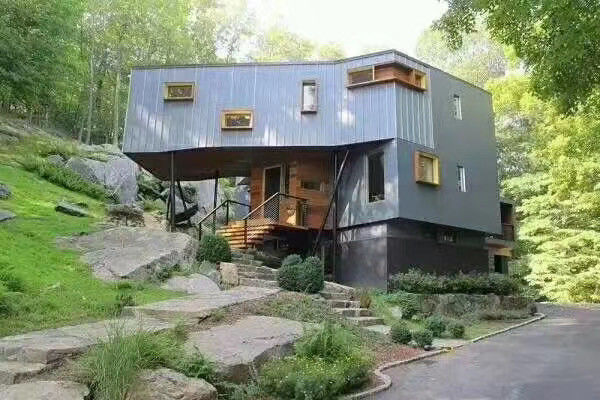

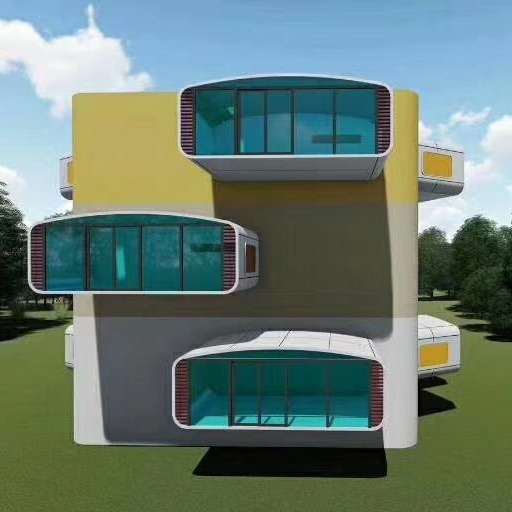

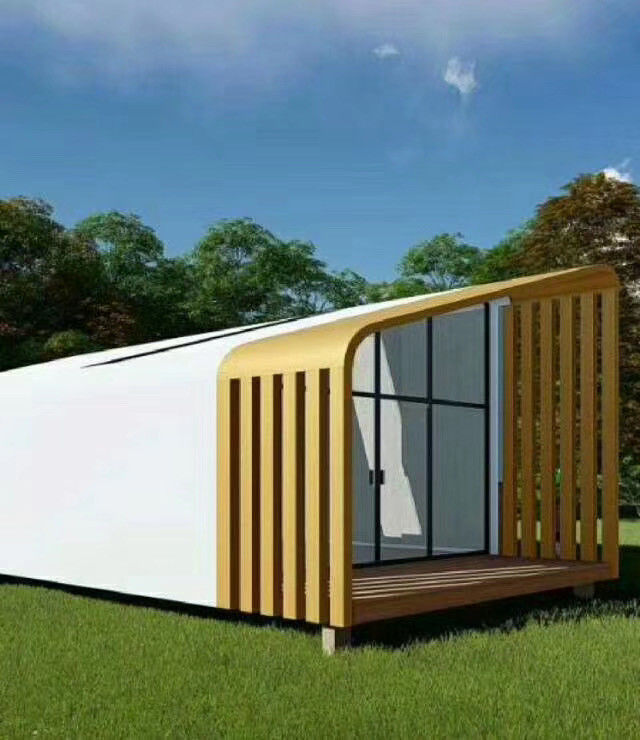

Container Light Gauge Steel House / Energy Efficient Prefab Homes 2 - 3 Floors

Basic Information
Place of Origin: China
Brand Name: Sussman
Certification: CE; ISO
Model Number: SU-LH08
Minimum Order Quantity: 50 square meters
Price: USD180-USD250 per square meter
Packaging Details: plastic film
Supply Ability: 500 square meter per week
Type: Prefab Modern Villa Prefabricated Tiny House Windows: Aluminum Alloy Windows
Application: Steel Fabricated House Structure: Galvanized Steel Frame
Size: Flexible Name: Modular Home Luxury Villa
High Light:

modern steel structure homes

,

modern prefab modular homes

Contaier style Labor Camp Light Steel Prefab House 2-3 floors



[Foundation]

The main forms of foundation are pile foundation, strip foundation, box foundation, light steel keel pile foundation and strip foundation. (Please contact us for the details of the basic part, and we will arrange technical staff to answer for you.)



[Subject structure]

The steel structure system adopts G550 steel, 1.0-1.8 mm thin-walled light steel keel system, and the structural connectors adopt 2.0 mm thick galvanized steel firmware.



[Roof structure]

The roof is roof truss + 12 mm thick OSB + waterproof membrane + asphalt tile / coloured stone tile / glazed tile, etc.





[Floor structure]

Most floor slabs are made of light steel truss, sound insulation cotton, OSB substrate, panel/carpet, etc. C+U section steel is used in the parts with small span.



[doors and windows]

The outer door is metal anti-theft door or paint-free solid wood door, the inner door is composite door or paint-free door (base price excluded), the toilet door is glass door or plastic-steel door (base price excluded); the windows are all aluminum alloy windows (if there are special needs and contact with us, such as hollow glass, insulating glass, etc.)



[design parameters]

Roof live load: 0.5kn/m2

Wind load: 30m-40m/s

Seismic Intensity: 9 Degrees

Service life: 50 years



TECHNICAL PARAMATERS
Steel Column G550 AZ150 Galvanized Steel (Hot-formed Aluminum coating steel)
Roof Frame G550 AZ150 Galvanized Light Steel keel
Structural slab Oriented Stand Board(OSB board)
Insulation Glass wool
Wall Exterior wall cladding/Interior wall bamboo fiber board
Floor Ceramic tile/wooden ground floor
Ceiling 12mm Gypsum board/10mm Banboo fiber board
Electric Ceiling lights, electric wire, socket
Window Aluminum window/hollow glass window
Doors Entrance door: steel security door, Inner door: wooden molded door
Toilet Sprinkler, hand basin ,water closet
Drainage system Provide plan, design and materials
Life span 70 Years
Container loading According to the order and custumer's requirements
Delivery time 20-30 working days after recepting the deposit
Application Hotel,House,Office,Shop,Villa



Interior Decoration

Container Light Gauge Steel House / Energy Efficient Prefab Homes 2 - 3 Floors 0

Container Light Gauge Steel House / Energy Efficient Prefab Homes 2 - 3 Floors 1
