| Place of Origin: | China |
|---|---|
| Brand Name: | Sussman |
| Certification: | CE; ISO |
| Model Number: | SU-CH007 |
| Minimum Order Quantity: | One 20 GP |
| Price: | USD4500 per peice |
| Packaging Details: | plastic film |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, D/P, T/T, D/A |
| Supply Ability: | 100 pieces per month |
| Sandwich Panel: | EPS, PU, Glass Wool, MGO | Frame: | Steel Structure |
|---|---|---|---|
| Door: | Steel Security Door | Use: | Office,House,Hotel,Shop,Toilet |
| Roof: | Corrugated Color Steel Sheet+sandwich Panel,Color Sandwich Panel | Floor: | Vinyl Sheet On Plywood |
| High Light: | prefab shipping container house,pre built container homes |
||

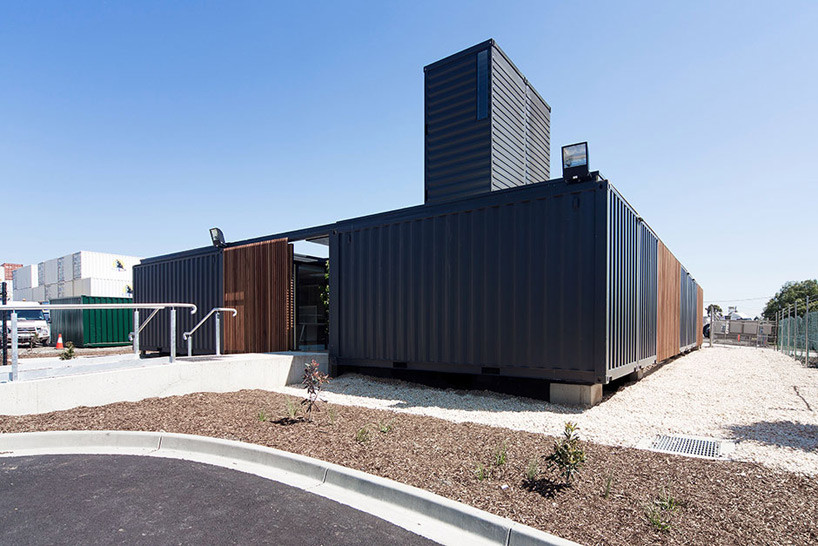

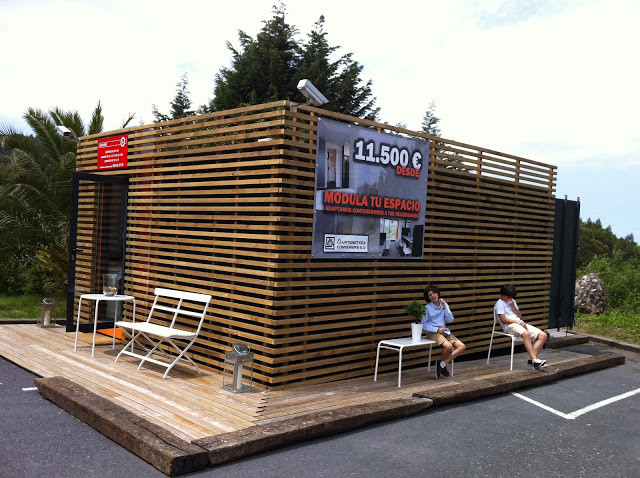

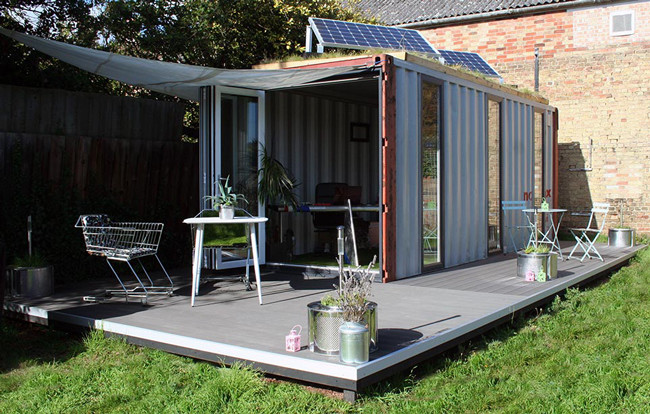

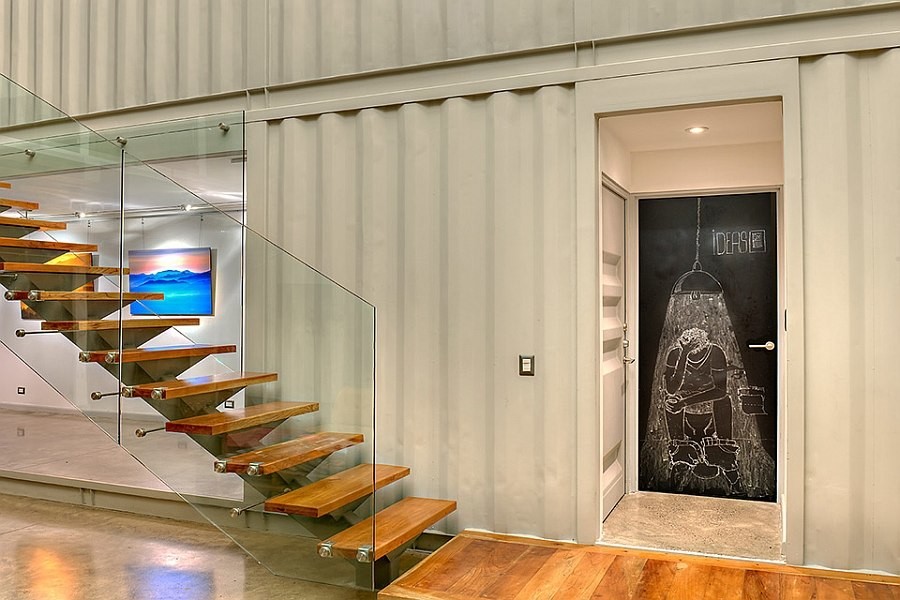

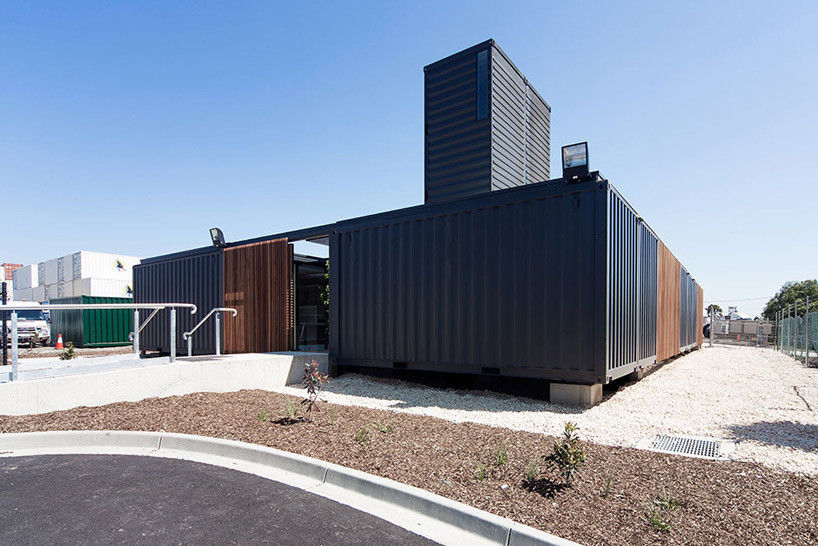

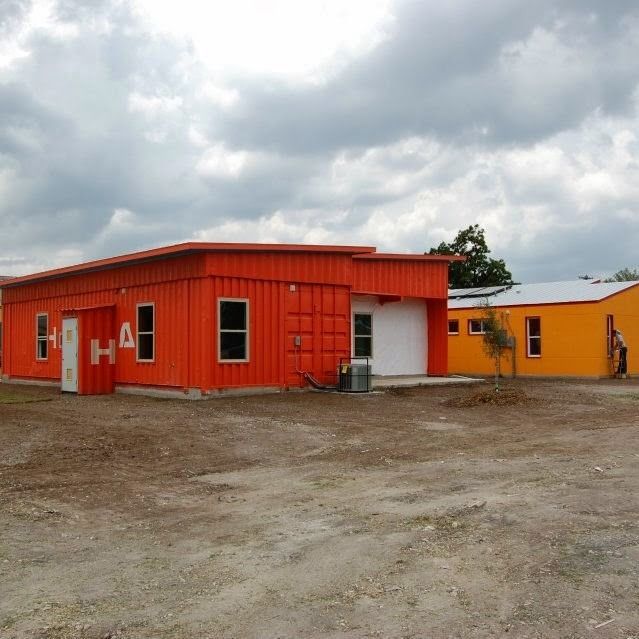

Luxury Prefabricated Steel Structure Flat Pack Shipping Container Homes With Sun Glass Window
| Container Size | 20ft,40ft,40HQ |
| Color | Optional |
| Loading | Can be shipping as ISO container |
| Structure | Steel base: Q235, hot galvanized. 2mm power coated steel as main beam and 1.5mm steel as second beam |
| Column: 3mm steel, Q235, hot galvanized, power coated | |
| Steel corner with hole: Q235, hot galvanized, power coated | |
| Roof system: Q235, hot galvanized. 3mm power coated steel as main beam and 1.5 mm steel as second beam. | |
| Wall panel | 50mm Glass wool sandwich panel/EPS |
| Roof | color steel sheet as roof sheet+40mm glass wool insulation+ ceiling |
| Floor | 16mm MgO Panel, with 2mm vinly sheet |
| Window | Alu Sliding window |
| Size:as requested | |
| Door | Steel door, with handle lock and keys. |
| External size:as requested | |
| Electrical system |
1 electrical distribution, 2 industrial plug, 2 lights, 2 switches, 3 sockets (with A/C socket), electrical wire (220V/50Hz) |
| Temperature | suitable temperature.-50°C~+50°C |
| Others | Furniture and appliance are customized-made to your requirements(additional cost) |
| Floor load | 0.5KN/square meter |
| Roof load | 1.5KN/square meter |
| Wind resistance | Grade 11(wind speed≤111.5km/h) |
Container homes is a standard mobile house. Solid structure makes this house resist up to 120KM/H wind speed. Flat packing and loading into 40 foot containers when shipping makes goods safe and easy to transport and lay in at local site.
With the character of free moving and fast installation, Modular house is highly favorite by construction companies, mining companies, road & bridge companies all over the world.
