Waterproof Prefab Shipping Living Container House Coffee Shops

Basic Information
Place of Origin: China
Brand Name: Sussman
Certification: CE; ISO
Model Number: SU-CM
Minimum Order Quantity: One 20 GP
Price: Negotiate
Packaging Details: plastic film
Delivery Time: 10-15 days
Payment Terms: L/C, D/P, T/T, D/A
Supply Ability: 100 pieces per month
Type: Shipping Container House Application: Temporary Offices, Workshop, Living Houses
Certificates: ISO 9001,CQGC,CNAS Installation: Online Technical Support
Material: Container Keyword: Container Home,Container House
High Light:

CQGC Shipping Living Container

,

CNAS Shipping Living Container

,

CQGC Shipping Container House

Prefab Shipping Living Container House Portable Shipping Container Coffee Shops



Sussman Service:

1. The house is made of light steel structure and rustproof color steel sandwich panel as wall and roof;

2. The size and layout can be designed as per customers' requirements for its flexible dimension;

3. The house has waterproof structure and heating insulation material, such as EPS, Rock wool or PU Panels interlock easily to form a complete thermally efficient shell;

4. Two kinds of flooring system are available, one is steel chassis floor, the other is concrete foundation;

5. One 40'HQ container can load about 160m2 considering 75mm thickness panel for roof and wall;

6. The house can resist heavy wind load of 0.5KN/m2 and 7-8 degree seismic intensity.

Container house size chart
Size External Dimensions Internal Dimensions Weight
Length Width Height Length Width Height
8'X8' 2435mm 2435mm 2896mm 2235mm 2235mm 2625mm 950kg
10'X8' 3025mm 2435mm 2896mm 2825mm 2235mm 2625mm 1150kg
16'X8' 4885mm 2435mm 2896mm 4685mm 2235mm 2625mm 1350kg
20'X8' 6055mm 2435mm 2896mm 5855mm 2235mm 2625mm 1800kg
Standard
24'X8' 7200mm 2435mm 2896mm 7000mm 2235mm 2625mm 2300kg
30'X8' 9000mm 2435mm 2896mm 8800mm 2235mm 2625mm 2450kg
20'X10' 6055mm 3000mm 2896mm 5855mm 2800mm 2625mm 2380kg

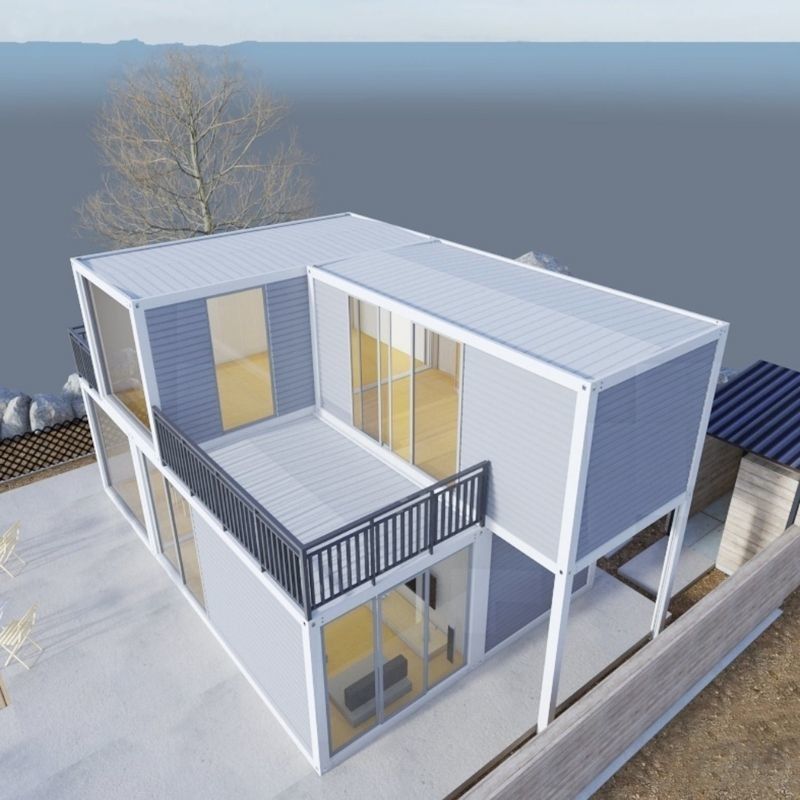

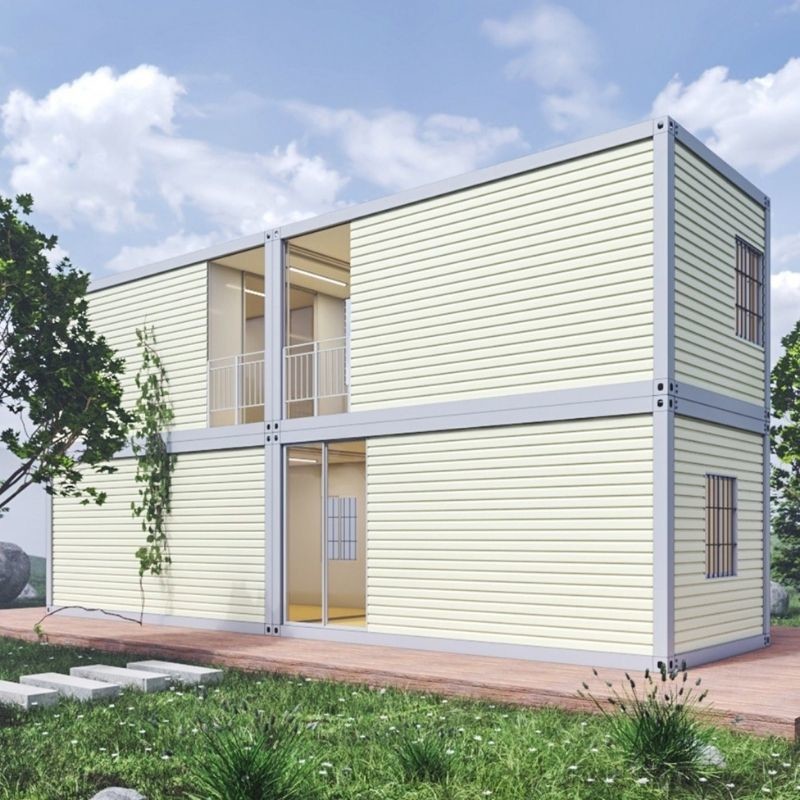

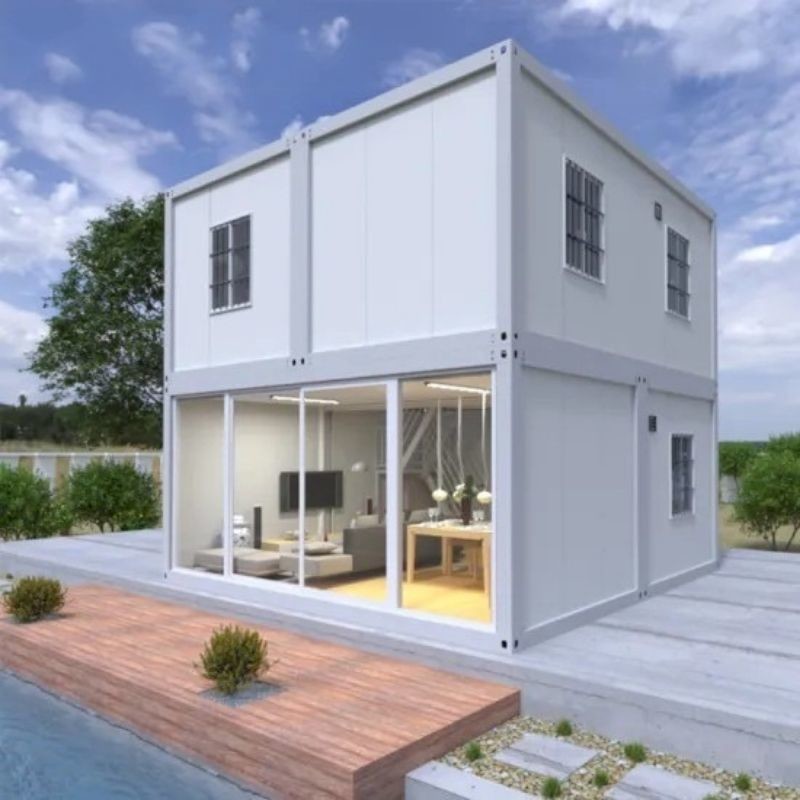

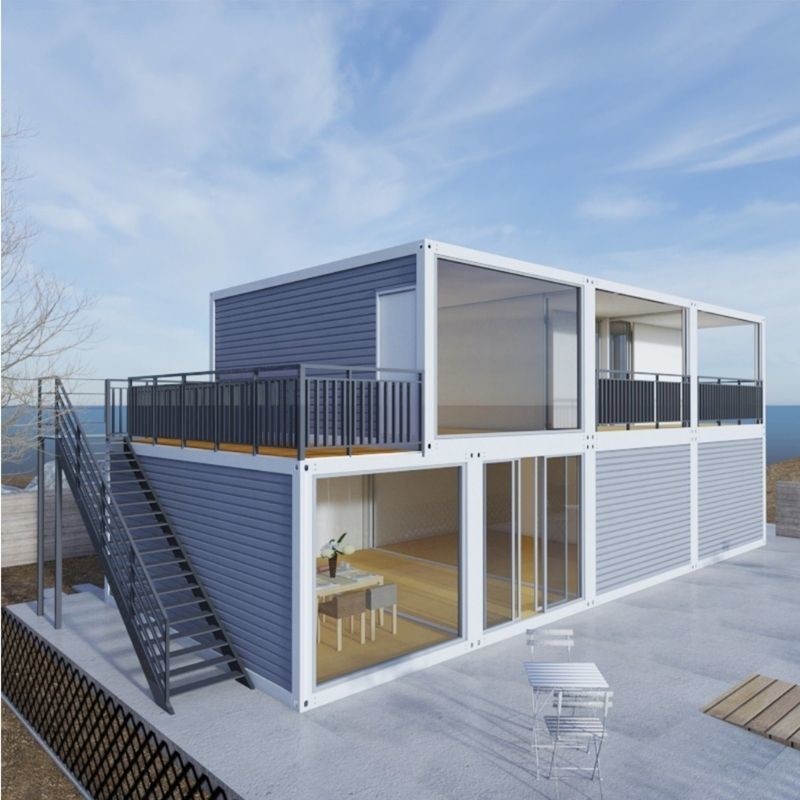

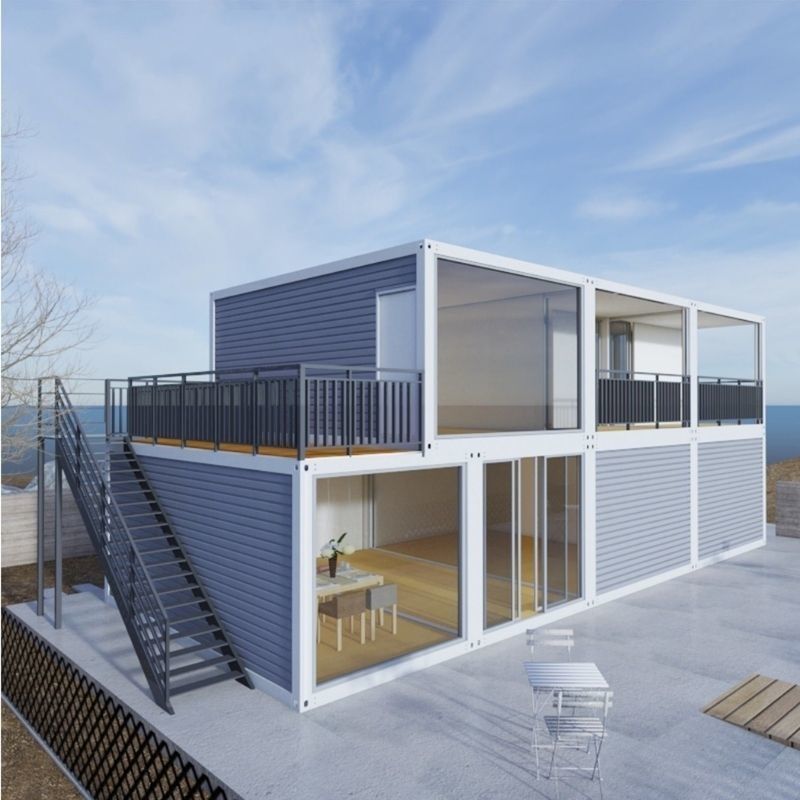

Detail Images:

Waterproof Prefab Shipping Living Container House Coffee Shops 0

Waterproof Prefab Shipping Living Container House Coffee Shops 1

Product Advantages:

1, Flexibility:

A panelized modular unit that offers the flexibility to combine units to create an expandable space. Flat-pack units can be adjoined to create a larger footprint (or) stackable upon themselves.

2, Logistics:

These units are shipped in a knock-down state allowing for 4-6 units to fit inside a single 40HQ sea freight container, resulting in an unparalleled logistical and freight advantage.

3, Design:

Interchangeable SIP (structurally-insulated) wall panels. Move windows and man door locations around as desired. Wall panels are spray-foam insulated, resistance to rot and mold, unlike traditional domestic wooden stick-built units.

4, Portability

Structurally equivalent to an ISO container - units can be lifted by crane, or offloaded by zoom boom or forklift. (dry weight ~5,000 lb each)

5, Stackable:

Units are stackable, engineered to be self-supporting up to 3 units high for living and use.

6, Assembly:

Units are designed to be user-friendly. Approximately 8mhrs of assembly time requiring only hand-tools and some overhead lift support.

7, Modularity:

The flat-pack units share the same dimensions as standard 20ft ISO Containers. This creates tremendous modularity: stack building units atop tool-crib containers (or) above pedestrian corridor units on those congested jobsites. A truly vertical solution for your temporary site facilities! Adjoin units together to create a larger complex. These units are the definition of modular!
