| Place of Origin: | China |
|---|---|
| Brand Name: | Sussman |
| Certification: | CE; ISO |
| Model Number: | SU-FL |
| Minimum Order Quantity: | One 20 GP |
| Price: | USD6500 per peice |
| Packaging Details: | plastic film |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, D/P, T/T, D/A |
| Supply Ability: | 100 pieces per month |
| Name: | Steel Structure Container | Window: | PVC Sliding Window |
|---|---|---|---|
| Type: | Moneybox Flat Pack Container House | Material: | Corten Metal Steel |
| Life Span: | More Than 15 Years | Electricity: | Custom Made |
| High Light: | flat pack container office,flat pack shipping container |
||
Color painted 20'flat pack steel modular buildings house container with roof
Structure of the container
| Wall | 75mm glass wool sandwich panel, 0.4mm color steel sheet and 60kg/m3 glass wool density inside. |
| Roof | Outside is 0.5mm color steel as the surface, middle is 75mm glass wool insulation. Inside is 9mm melamine board. Permitted live loading:1.5KN/m² |
| Base | External wainscot is 0.3mm galvanized steel sheet metal, and insulation is glass wool. The supporting material is 16mm cement board and the inside decoration is 2mm rubber plastic flooring. Permitted loading: 3.0KN/m2 |
| Column | Galvanized steel, material: Q345-Q235, 3mm thickness. Connection part is M12 high strength bolt. |
| Door | Steel door, single door with dimension of 840*2035mm, furnished with lock. |
| Window | 1) PVC sliding window, white color, with dimensions of 800*1100mm; Supplied with fly screen. 2) PVC casement window, white color, size is 800*500mm. Supplied with fly screen. |
Installation effection of the container
How to install the wall panels

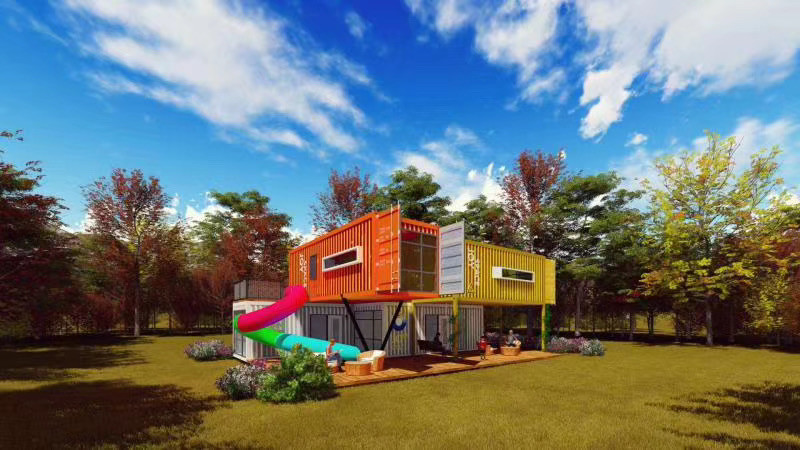

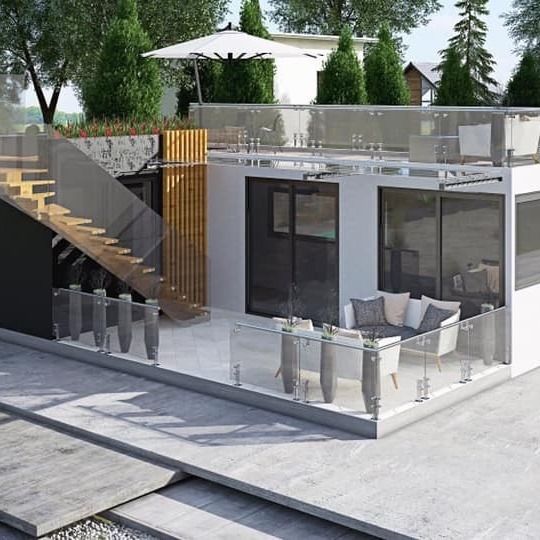

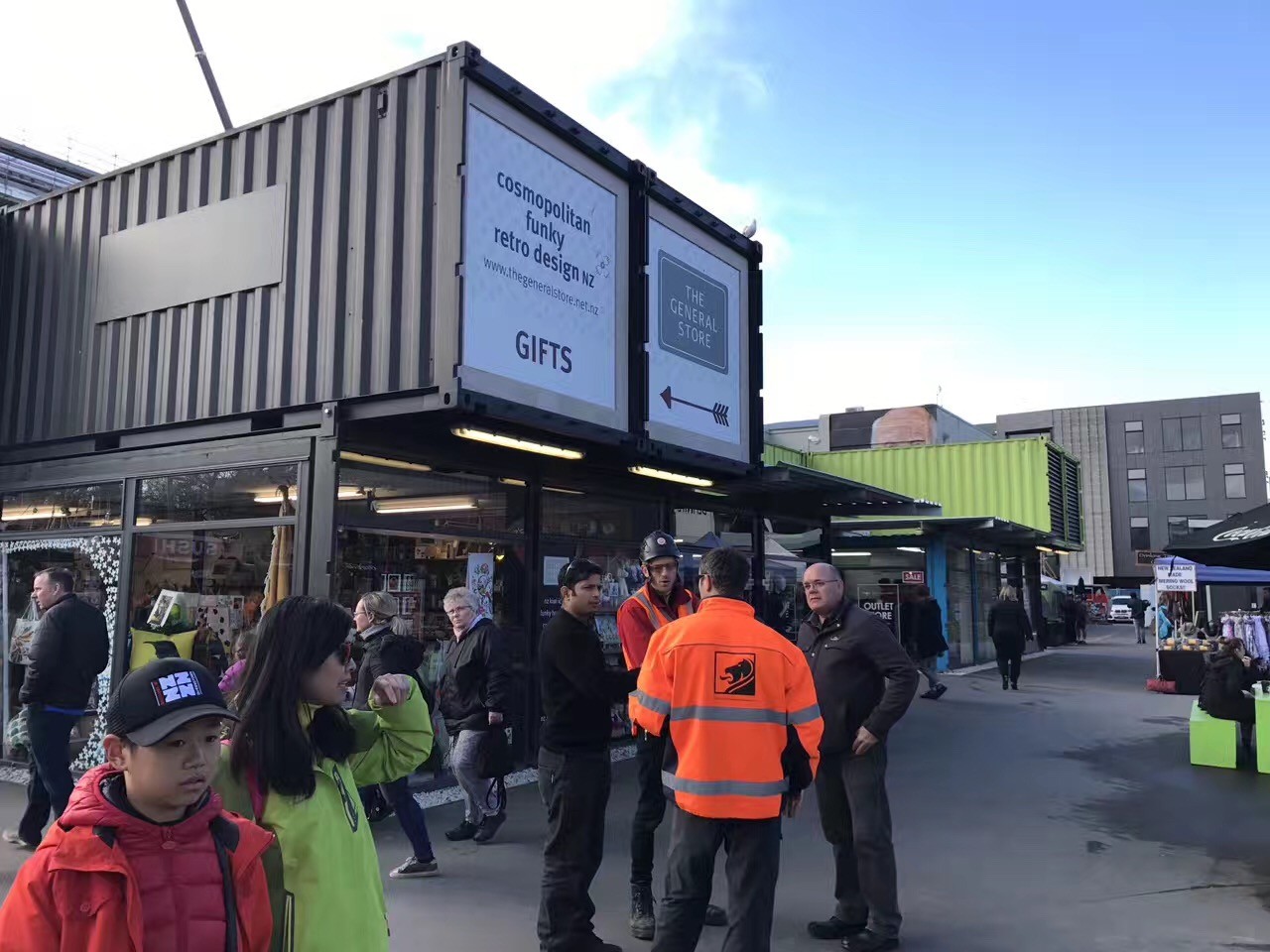

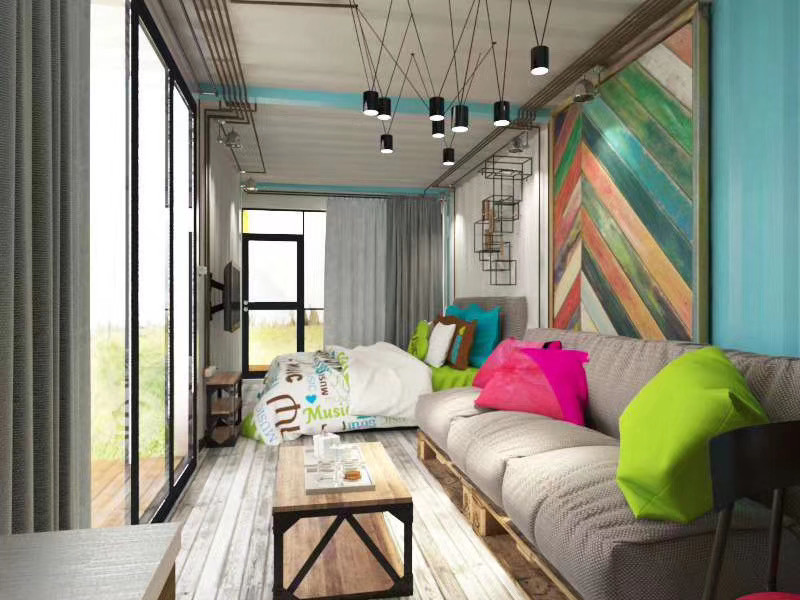

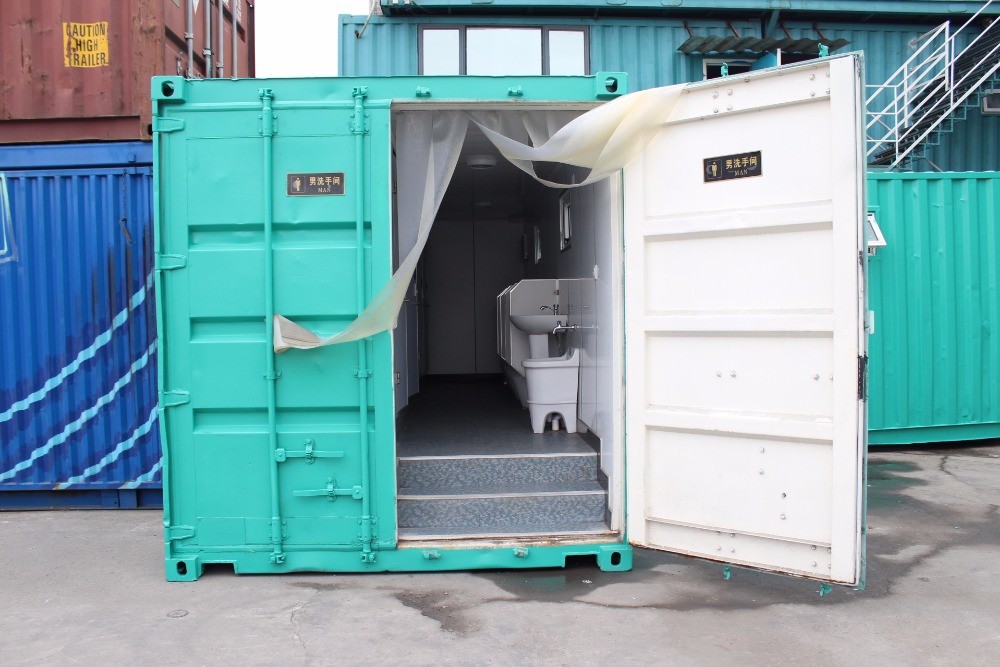

Finished products
