| Place of Origin: | China |
|---|---|
| Brand Name: | Sussman |
| Certification: | CE; ISO |
| Model Number: | SU-CL |
| Minimum Order Quantity: | One 20 GP |
| Price: | USD4500 per peice |
| Packaging Details: | plastic film |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, D/P, T/T, D/A |
| Supply Ability: | 100 pieces per month |
| Structure: | Wall + Steel Structure | Usage: | Clean Room, Bathroom, Toliet |
|---|---|---|---|
| Application: | Family Living House | Wall: | 50mm/75mm/100mm/150mm EPS/rockwool/glass Fiber Sandwich Panel |
| Life Span: | 20 Years | Window: | Aluminum Silding Window/Aluminum Shutter Window |
| High Light: | flat pack container office,flat pack insulated containers |
||

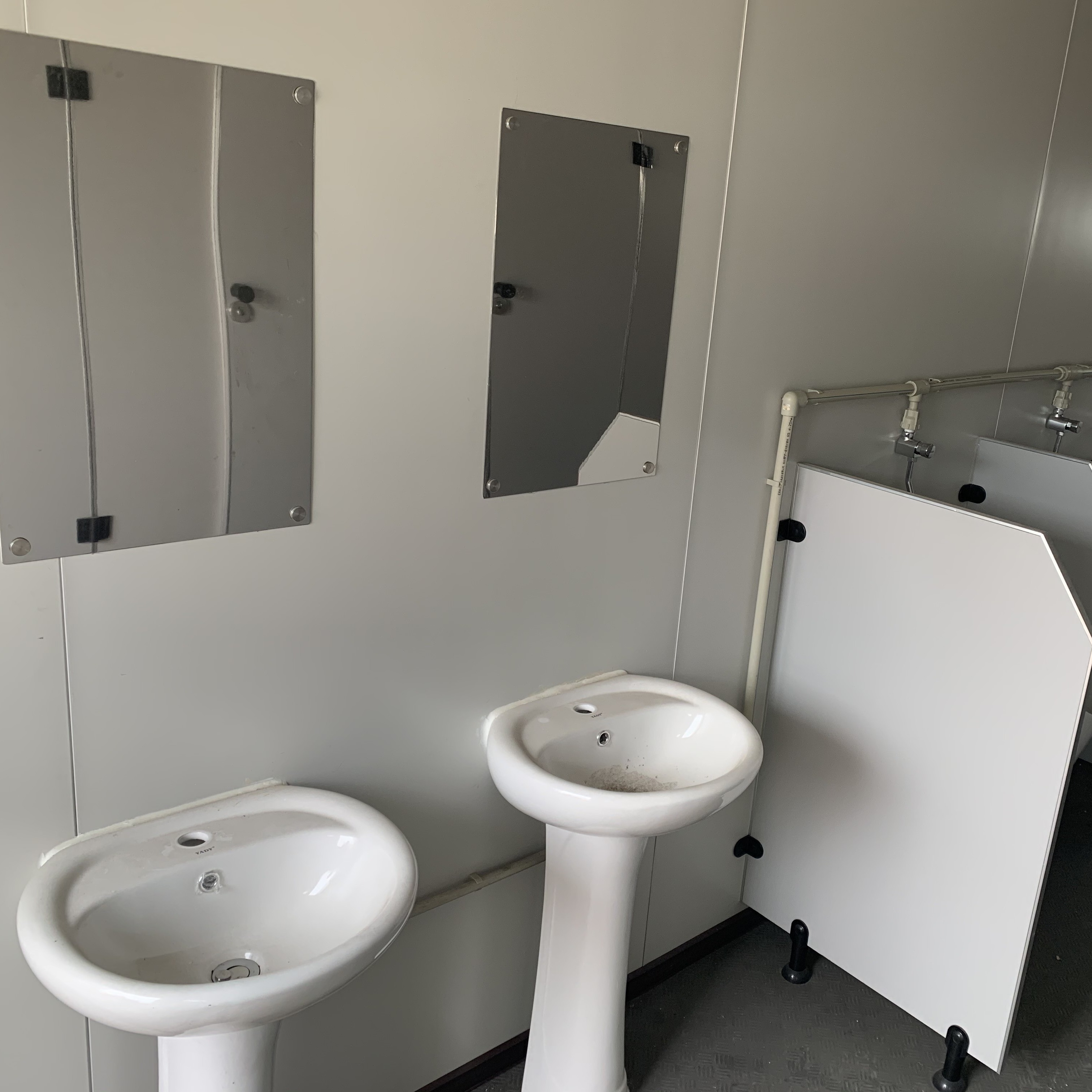

Clean room Bathroom Toliet Flat pack container with wash table& mirrow
Flexible Combination
The container house can be linked freely at length, width and height through the linking kits for bigger structure and different layout.
Toliet
Fast Installation
The standard house can be packed in one package for quick material collection, and four workers can erect 5unit per day.

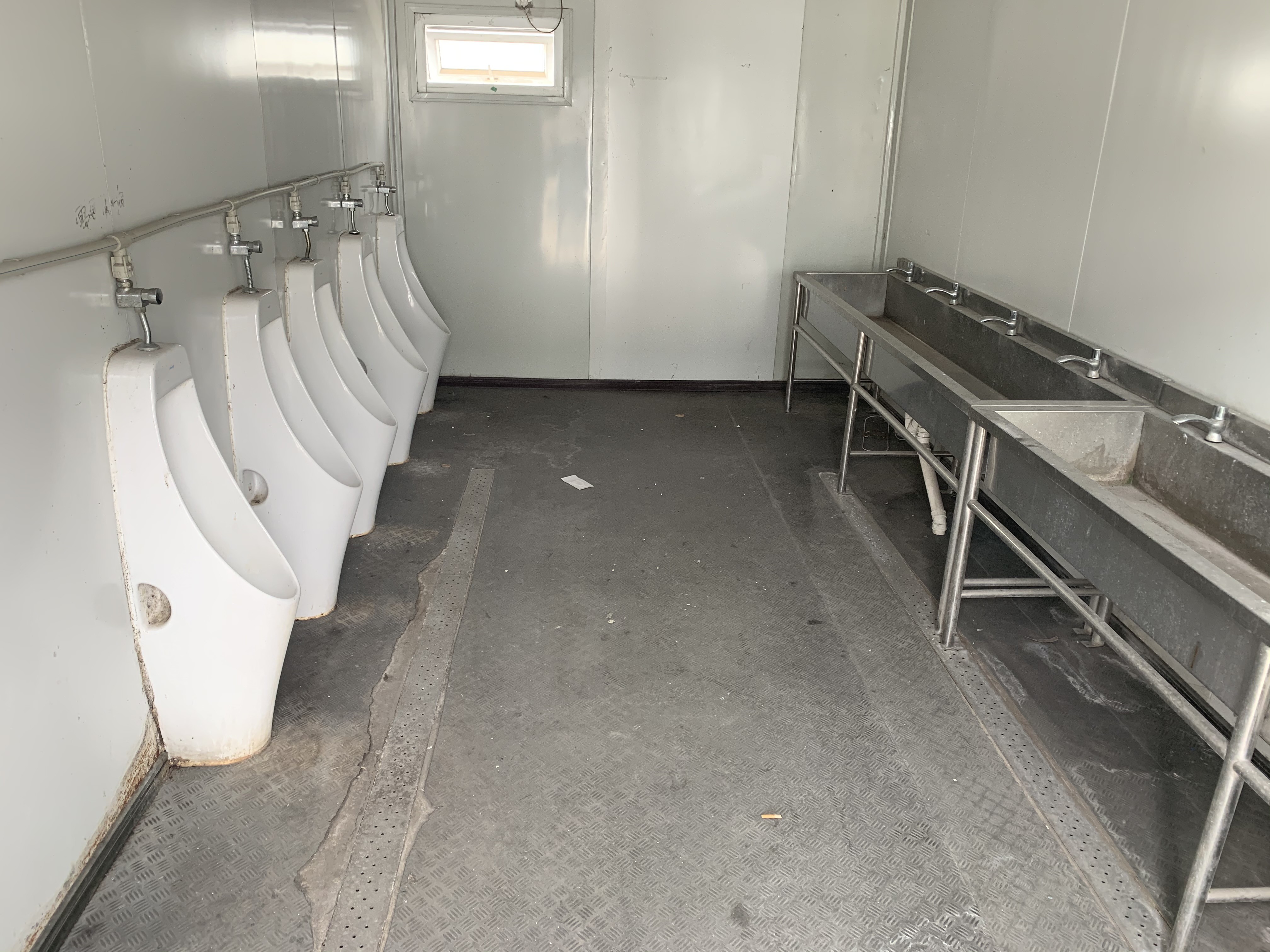

Bathroom
| 1 | frame | color: black | 4mm floor frame+3mm roof frame+4mm column+corner | 1 | set |
| 2 | roof | exterior sheet | shipping container plate 2.0mm | 1 | set |
| galvanzied c purlin | 2.0mm(C100*50*20) | 1 | set | ||
| rockwool insulation | 100mm,70KG/M3 | 1 | set | ||
| decorative ceiling | 0.35mm | 1 | set | ||
| 3 | floor | composit wood floor | 12mm | 1 | set |
| fiber cement | 12mm fiber cement | ||||
| rockwool insulation | 100mm,70KG/M3 | 1 | set | ||
| color steel sheet | 0.5 color painted steel plate | 1 | set | ||
| 4 | wall | exterior sheet | shipping container plate 2.0mm | 1 | set |
| galvanzied sqaure tube | 40*60*2.0mm | 1 | set | ||
| rockwool insulation | 100mm,70KG/M3 | 1 | set | ||
| composit wood sheet | composite wood floor | 1 | set | ||
| wall background(PMMA) | lumber core with PMMA PICTURE | 1 | set | ||
| 5 | door | door | 2438*2591 | 1 | set |
| 6 | electricity system | distribution box | 1 | set | |
| industrial socket and plug | voltage 220/400V,50Hz, 3/5 极, 32A | 1 | set | ||
| ceiling lamp | 18w | 6 | pcs | ||
| socket(AC) | 16A three holes | 1 | set | ||
| socket(wall) | 10A five holes | 2 | set | ||
| light switch | 2 | set | |||
| electricity wire | wire | 1 | set | ||
| hydraulic system | 1 | set | |||
| 7 | sealent | strucural adhesive | each slab joint | 1 | set |
| polyfoam adhesive | window&door opening | ||||
| silicon sealant | window&door opening | ||||
| 8 | decorative line | concave line+skirting line | PVC skirting line | 1 | set |
| 9 | accidential expense | labor cost+welding material+depletion | 1 | ||
| 11 | Toliet | 5 | sets | ||
| 12 | Mirrow | wooden | 1 | set | |
| 13 | wash basin (inlet&outlet) | 1 | set |
Our seivice
1. Before production: if you are going to place order, and need we design for you ,just provide us your idea and photos we can design for you
2. During production: we can take photos for your goods during process .
3. After finished goods: when loading container, we will take loading picture for you .
4. After sale: if you have any problem or questions about the goods, just let us know by anytime, we will reply you in soonest time.
