|Structure:||Wall + Steel Structure||Application:||Coffee Bar, Conference Center,indoor Stadium|
|Life Span:||20 Years||Size:||6058*2438*2896mm|
|Keyword:||Moduler Homes, America Container House, Flat Pack Container House 40ft, Portable Storage House/Office, Container House Prefab Houses||Type:||Moneybox Flat Pack Container House, House Container, Prefabricated House Germany|
flat pack insulated containers,
flat pack shipping container

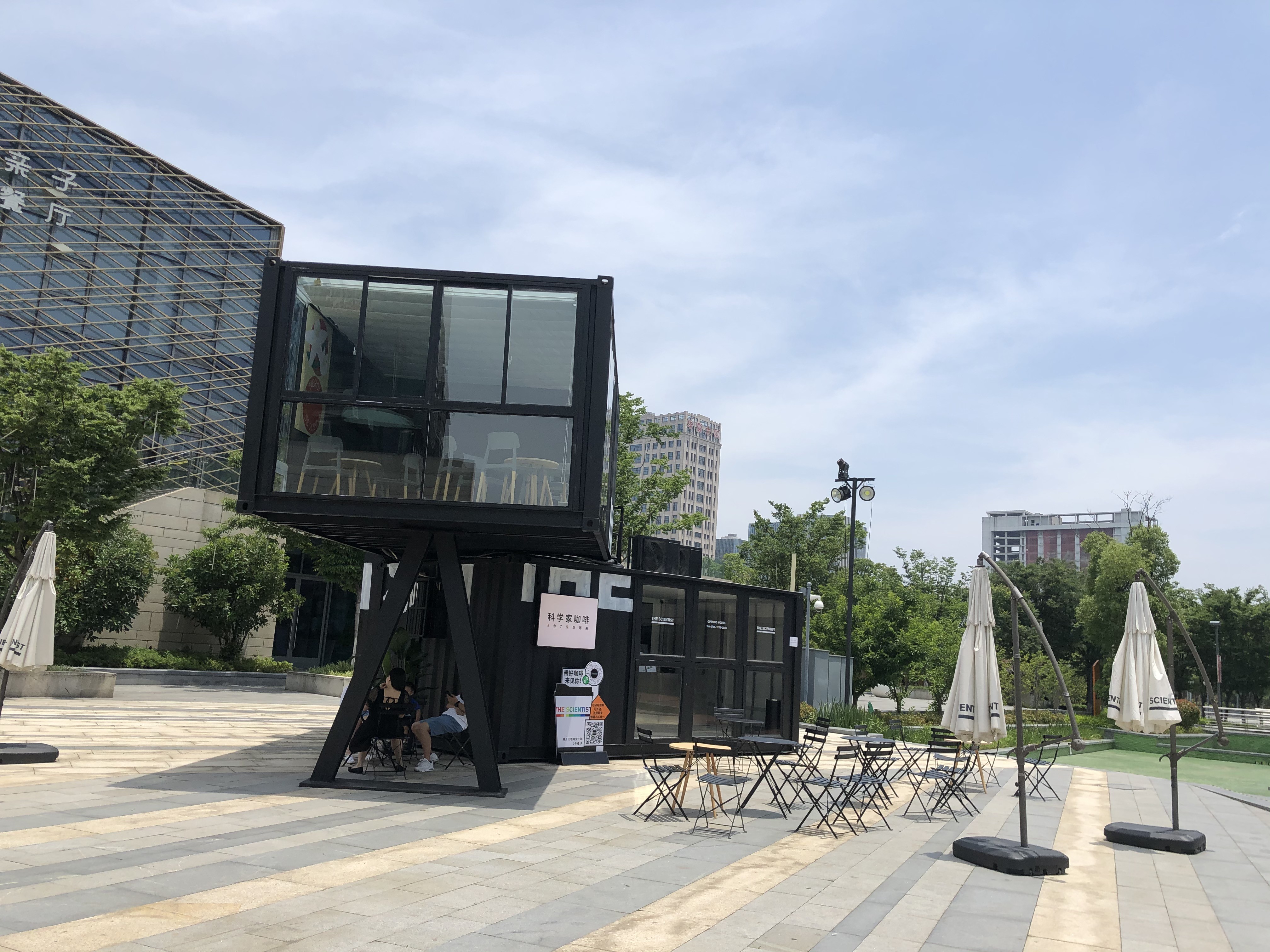

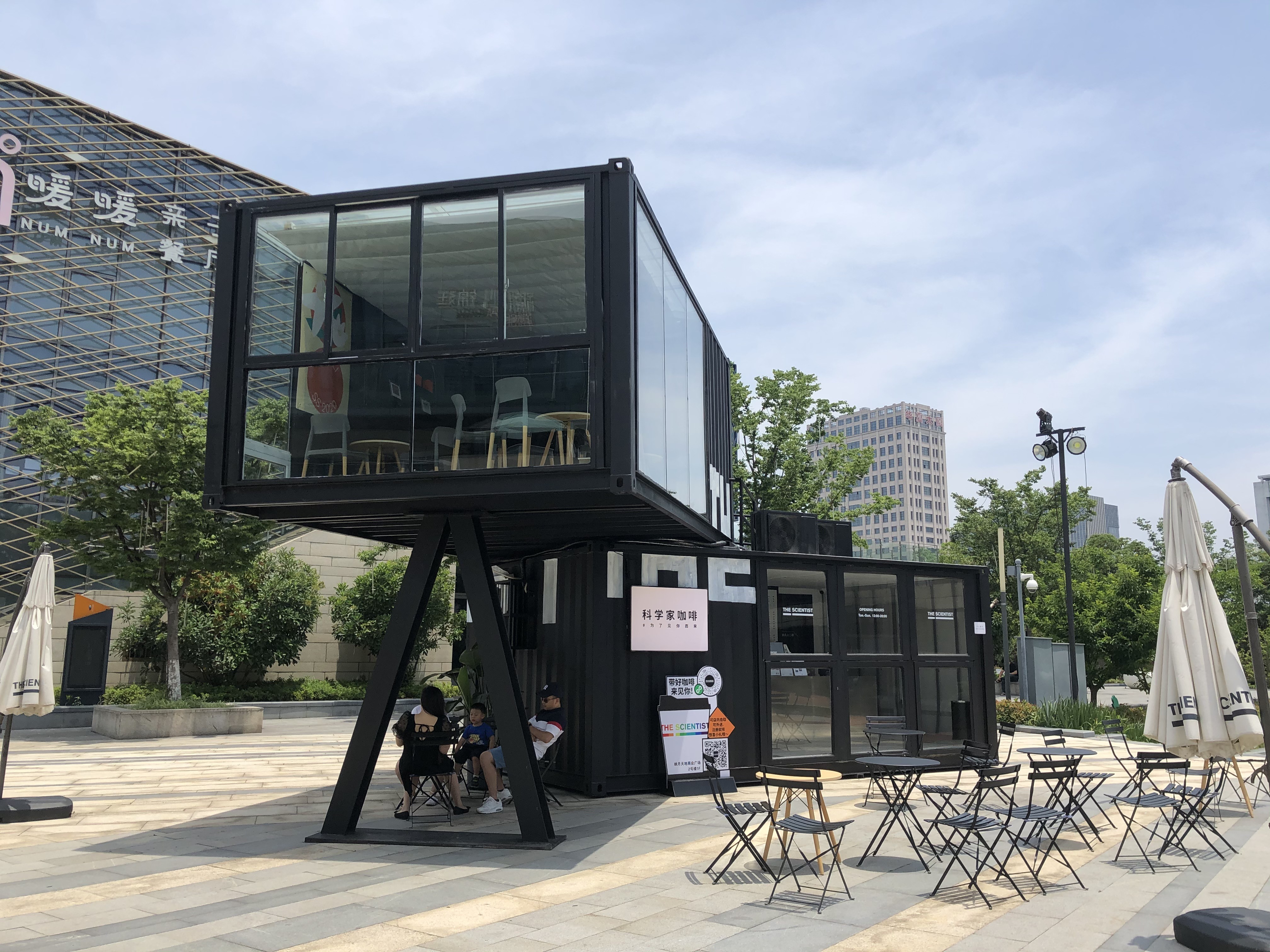

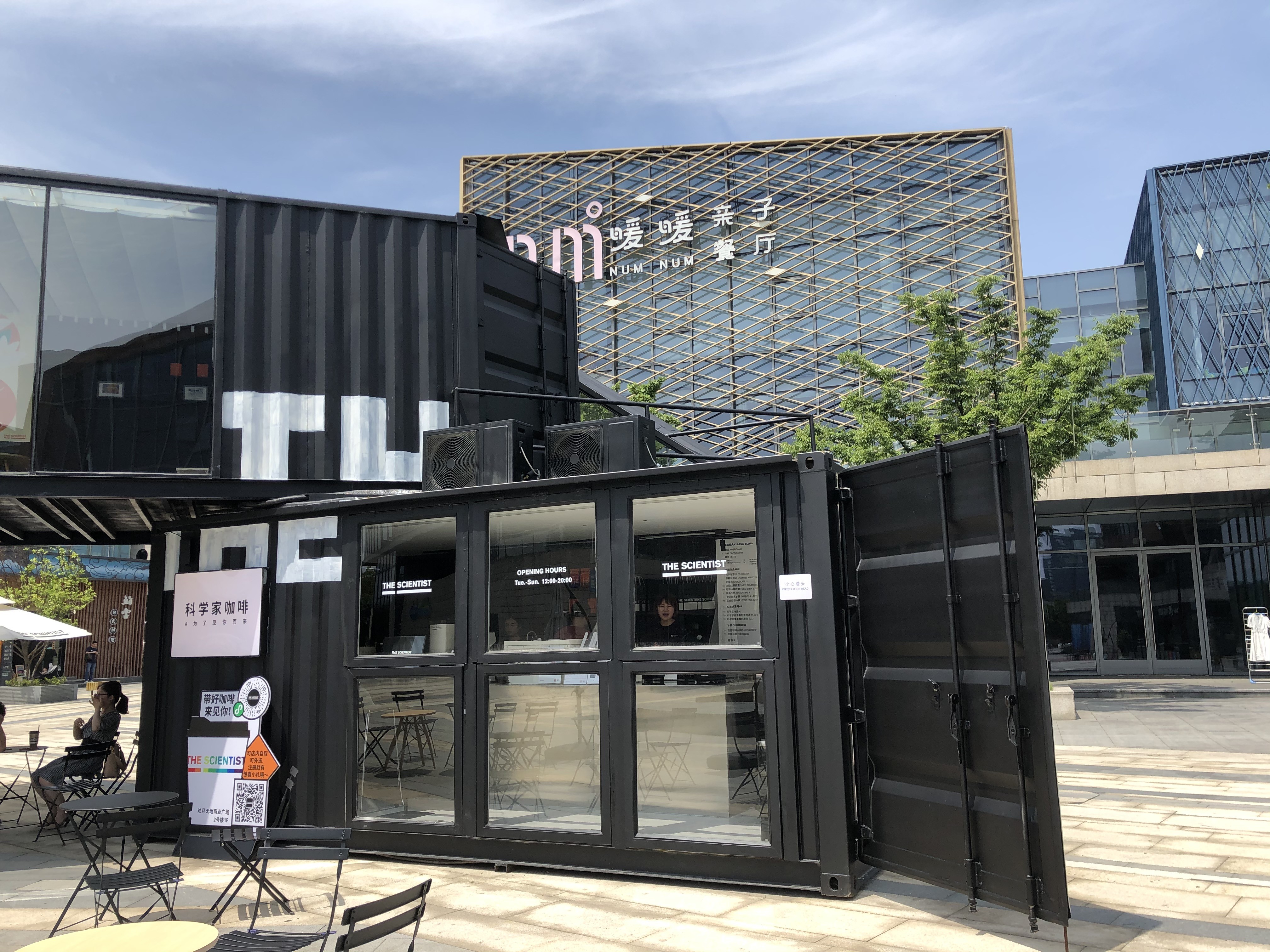

Outstretched Coffee and Bar Flat Pack Weld Steel Structure Containers 2 to 3 Layers
* Easy to transport and set up
* Maximise usable space from within an ISO container envelope
* Energy efficient and minimal environmental footprint
* Suitable for multiple applications
* Off-grid capabilities
|Wall||75mm glass wool sandwich panel, 0.4mm color steel sheet and 60kg/m3 glass wool density inside.|
|Roof||Outside is 0.5mm color steel as the surface, middle is 75mm glass wool insulation. Inside is 9mm melamine board.
Permitted live loading:1.5KN/m²
|Base||External wainscot is 0.3mm galvanized steel sheet metal, and insulation is glass wool. The supporting material is 16mm cement board and the inside decoration is 2mm rubber plastic flooring.
Permitted loading: 3.0KN/m2
|Column||Galvanized steel, material: Q345-Q235, 3mm thickness. Connection part is M12 high strength bolt.|
|Door||Steel door, single door with dimension of 840*2035mm, furnished with lock.|
|Window||1) PVC sliding window, white color, with dimensions of 800*1100mm; Supplied with fly screen.
2) PVC casement window, white color, size is 800*500mm. Supplied with fly screen.
