| Place of Origin: | Wuxi,China |
|---|---|
| Brand Name: | Sussman |
| Certification: | CE; ISO |
| Model Number: | SU-CP |
| Minimum Order Quantity: | 1 set |
| Price: | USD1900-USD2200 per square meter |
| Packaging Details: | standard packing |
| Delivery Time: | 10-15 |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/A, D/P |
| Supply Ability: | 500 square meter per week |
| Wall&roof: | Silicon Phenol Board | Window: | Aluminum Silding Window/Aluminum Shutter Window |
|---|---|---|---|
| Steel Structure: | Square Tube+Silicon Phenol Board | Steel Frame: | 2.5-3.0 Mm Steel Colums And Beams |
| Feature: | Durable , Heat-proof , Fast And Easy To Assemble | Door: | Sliding Door / Wooden / Safety Door |
| High Light: | 75mm container modular homes,75mm Silicone Board Prefab Homes,RAL color Prefab modular Homes |
||
75mm Silicon Phenol Board Fireproof A Grade Prefabricated House Modular Container House
|
Steel Frame
|
2.5-3.0 mm steel colums and beams
Color usually white , other RAL color is available .
|
|
Wall / Roof panel
|
50/75/100mm mm Silicon phenol board
|
|
Floor
|
Mgo board + PVC floor with different color to choose
|
|
Window
|
Double glazed PVC window or customized
|
|
Door
|
Alloy door / wood door / PVC sliding door
|
|
Bathroom
|
Shower,Seated Toilet,Wash Bacin,Towel Rack+Mirror+Paper box
|
|
Electric system
|
Switch,socket,lamp,light,waterproof socked,distribution box etc.
Australia standard , American standard , French standard etc
SAA approved 2.5mm cable to power points, 1.5mm cable to lights, light switches & fittings. Waterproofed external plug
|
|
Max. Anti-wind speed
|
110 km/h
|
|
Earthquack
|
10 grade
|
Container House Description:
1. Container House is a construction product which is mobile,prefabricated and reusable.
2. The house adopts standardized design,factory production,and takes cabinet as the elemental unit.
3. Container house is not only fit for individual usage,but also for spacious room application formed by various horizontal and vertical direction combination.
4. Container house structure uses standardized structural elements that are welded by profile steel or cold-formed thin-wall steel.
5. Combined container houses is connected and fastened by high strength screws,so that house structure is simple,easy to install.
6. Container house is widely used for real estate development exhibition hall,product sale showroom,temporary reception center,commercial temporary office,store and so on.
Characters:
1) Good ability to assemble and disassemble for several times without damage.
2) Could be lifted, fixed and combined freely.
3) Heatproof and waterproof.
4) Cost saving and convenient transportation
5) Service life can reach up to 15-20 years
6) We can provide the service of installation, supervision and training by extra.
Container House layout

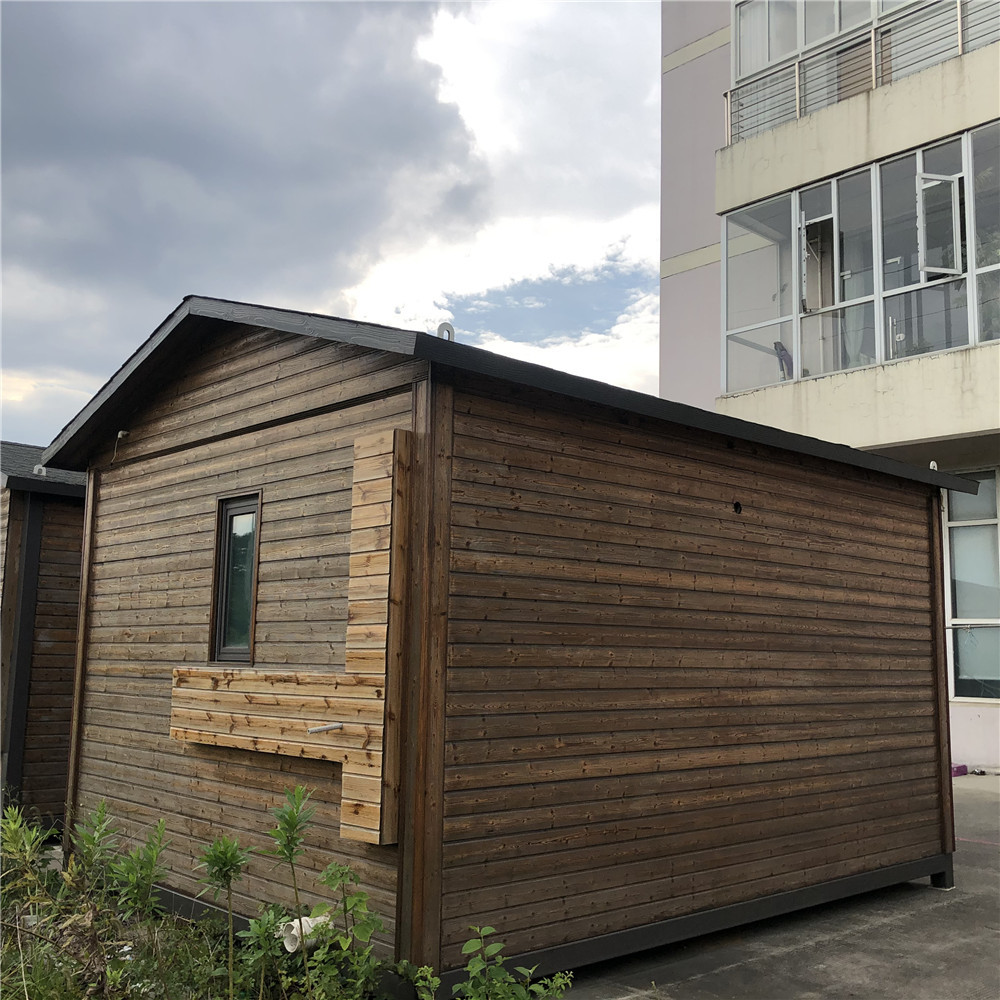

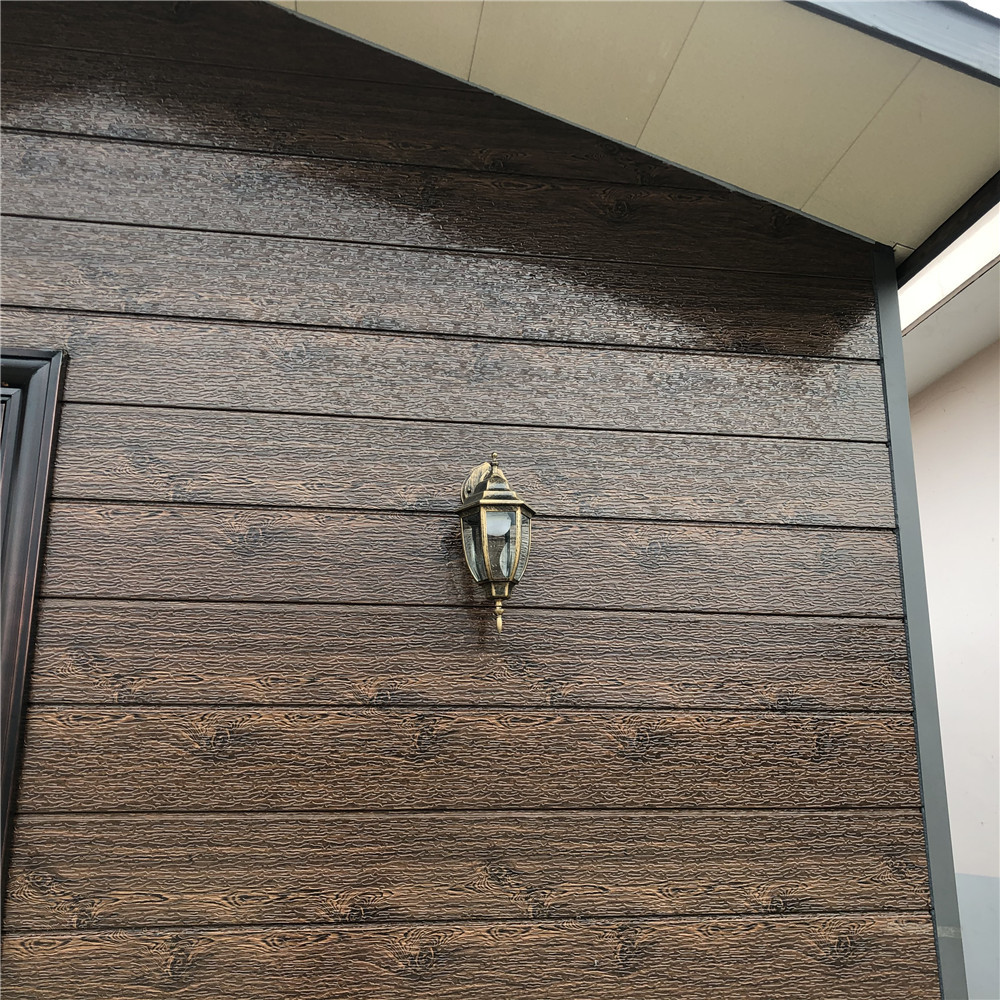

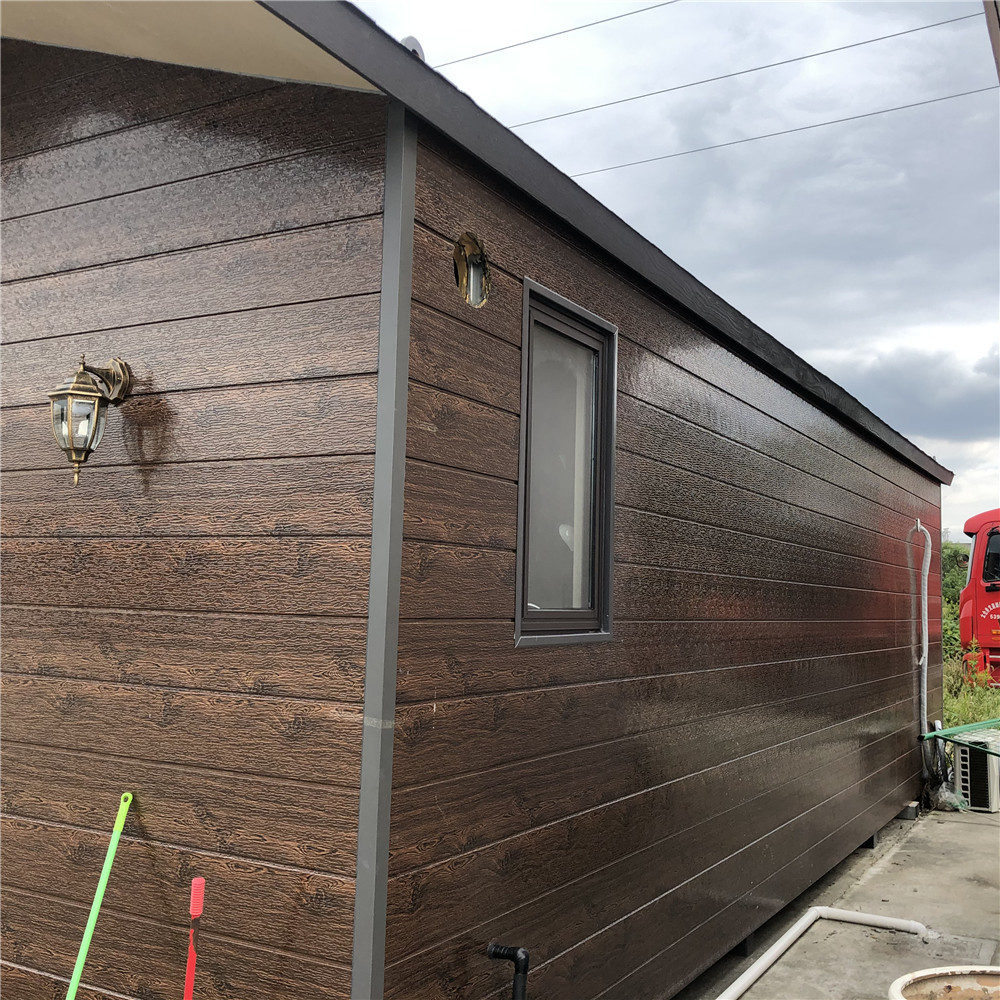

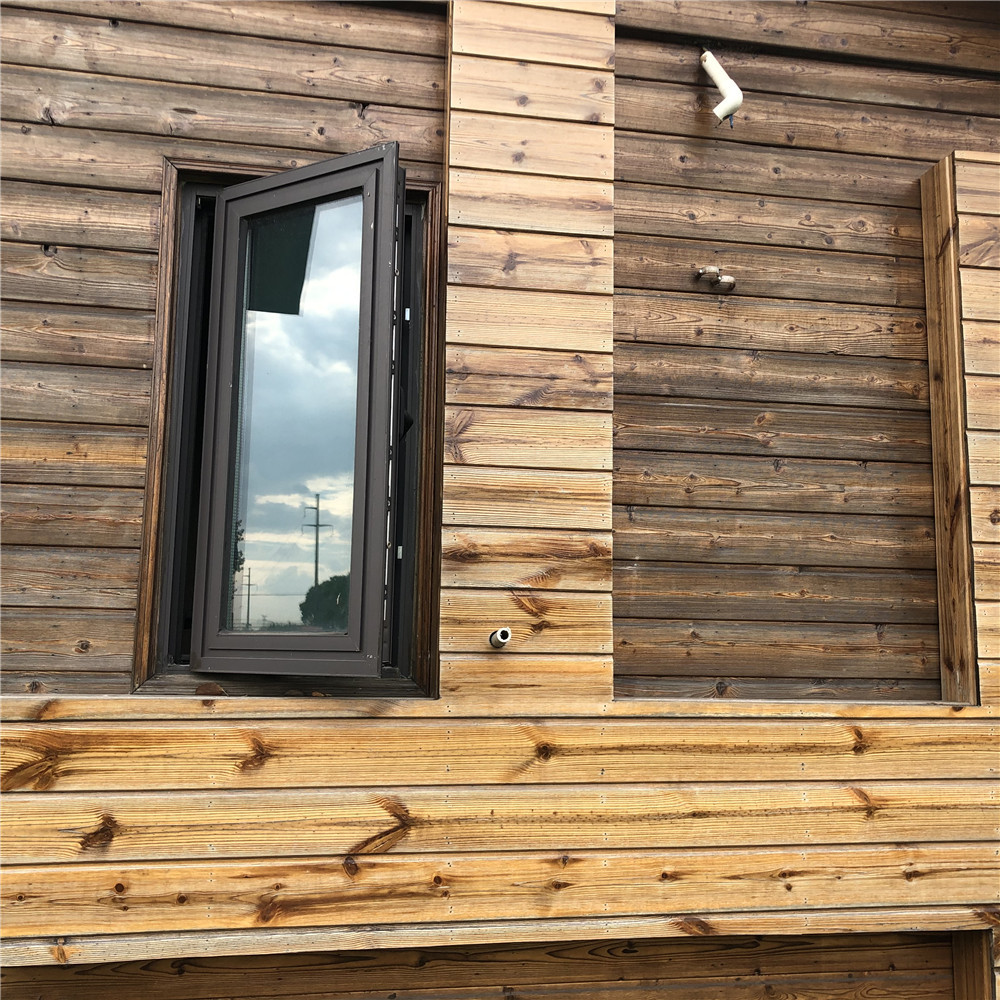

Picture of container
