|Type:||Light Steel Villa House,Prefab House Steel Structure Villa||Structure:||Q235 Galvanized Steel Frame|
|Beam:||2C Section Steel, Tube Truss Steel||Installation:||Online Technical Support|
|Window:||Aluminum Silding Window/Aluminum Shutter Window||Door:||Aluminium Alloy Sliding Door|
Q235 Light Steel Villa House,
Q345 Light Steel Villa House,
Q235 prefabricated metal homes

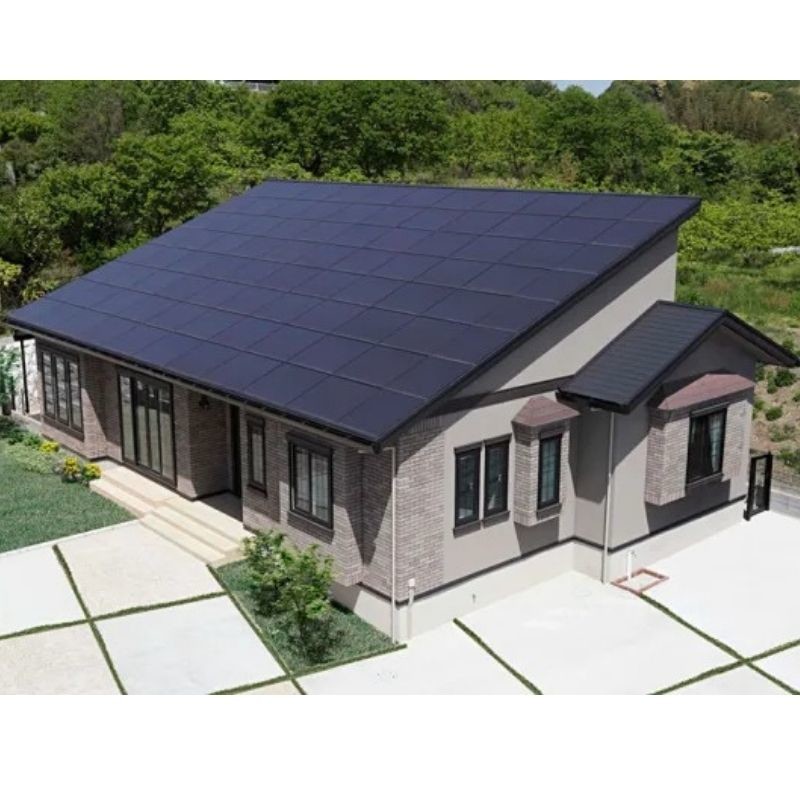

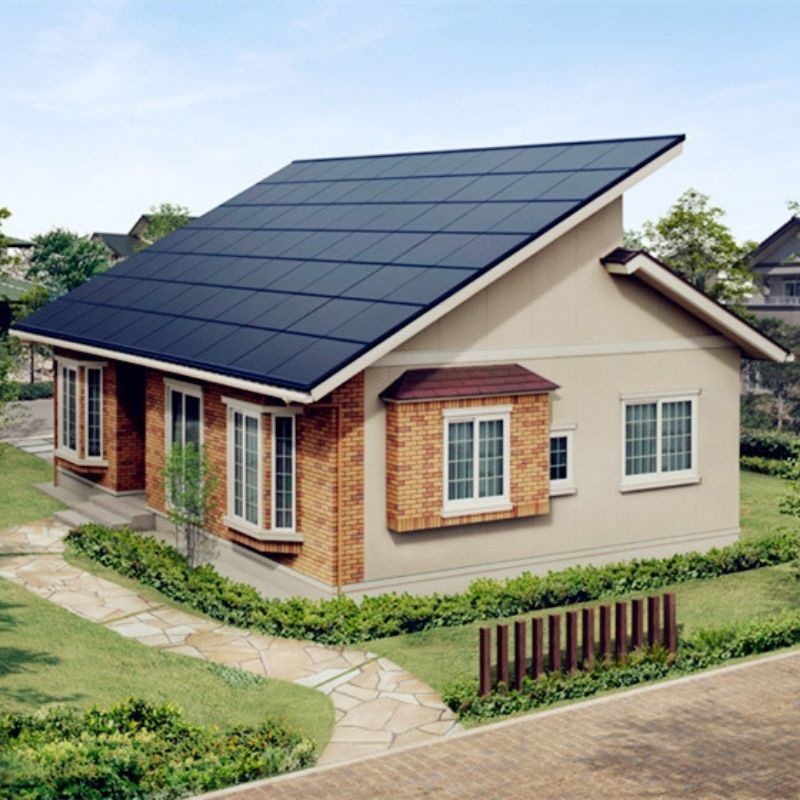

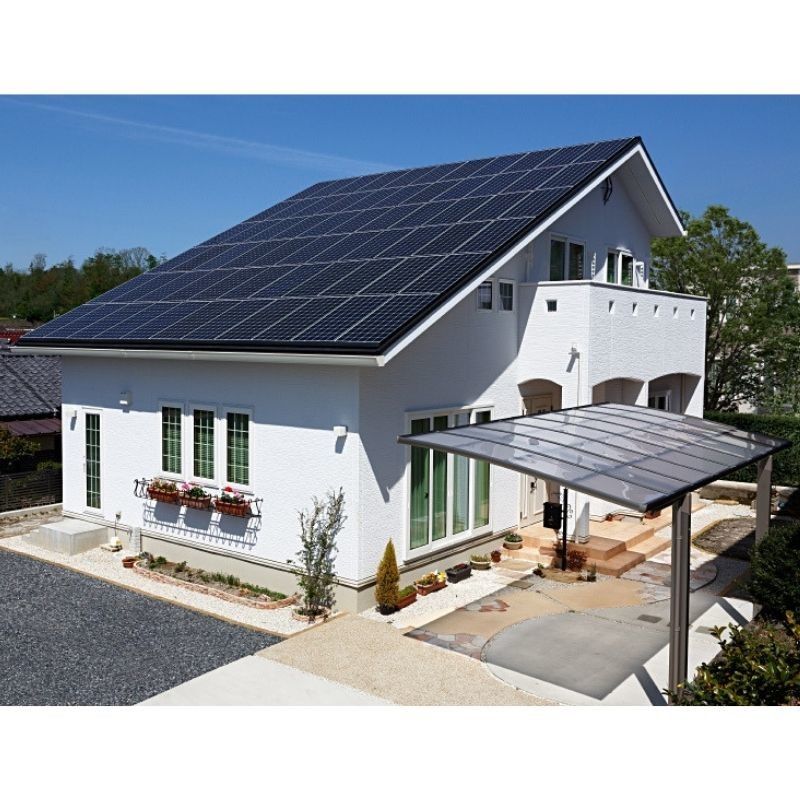

Q235 Residential Vacation Prefabricated Light Gauge Steel Villa House
The Design of the House:
GROUND FLOOR PLAN:

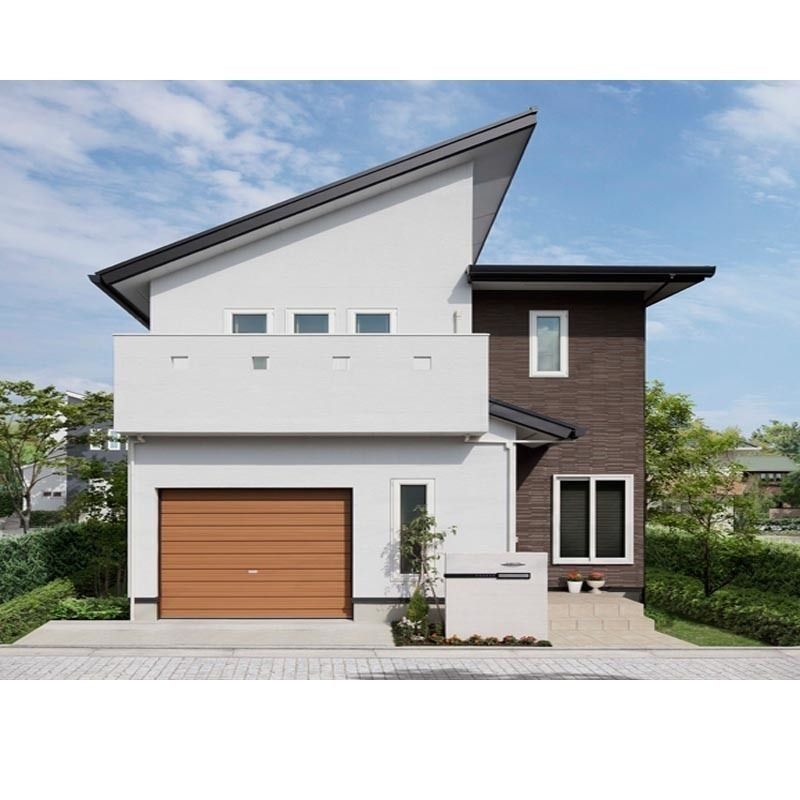

The ground floor plan consists of the open garage which can accommodate 1 SUV type vehicle, carefully designed to have ample space when you open both doors of the vehicle. This area could be design with entrance to the dining area as access to the inside of the house. Small porch is located at the front and opens to the living or receiving area viewing all the way to the kitchen. As you can see from receiving to dining and to the kitchen is open to make these area look more spacious.
Going further into detail, at the right side, the toilet and bath and storage area under the staircase are located. On the left side in line with the garage is a small bedroom which can also serve as guest room or a maid’s room. At the back is laundry or service area, or it can also be dirty kitchen.
SECOND FLOOR PLAN:
Going into the second floor of the house, the master’s bedroom measures 4.5 m by 4.0 m or you have 18 square meters with built-in cabinets. it also opens to a small terrace at the front, good area for viewing the horizon or landscape maybe. If this is not enough, there is a hallway going to the spacious terrace at the left side measuring 3.7 m by 8.3 m. With this area, you can already make this as venue for small gathering, also a good area to relax at night gazing the stars during the peaceful night. On the far back is a standard bedroom also equipped with built-in cabinets. A common toilet and bath is also provided to serve the two bedrooms.
|Main Steel Frame||Column & Beam||Q235,Q345 Welded H Section Steel|
|Purlin||Q235 C&Z purlin|
|Knee brace||Q235 Angle Steel|
|Tie Rod||Q235 Circular Steel Pipe|
|Secondary Frame||Brace||Q235 Round Bar|
|Vertical & Horizontal Support||Q235 Angle Steel, Round Bar or Steel Pipe|
|Roof Panel||EPS/Glass Fiber/Rockwool/PU Sandwich Panel or Steel Sheet|
|Maintenance system||Wall Panel||Sandwich Panel /Corrugated Steel Sheet|
|Window||Aluminum Alloy/PVC/Sandwich Panel|
|Accessories||Door||Sliding Sandwich Panel door/ Rolling Metal door|
|Live load on roof||50kg/Sqm(According to your request)|
|Wind Resistance Grade||12 Grades|
|Structure Usage||UP to 50 years|
|Options||Vast array of colors and textures available|
1, All the materials are well packed by theplywood or the steel skid before loading the container.
2, One 40'HQ can load about 80 square meter building.
3, All the materials are well fixed and tight to prevent the moving during the transport.
4, Loading plan will be designed before the materials loading to utilize the loading space and reduce the shipping cost.
