Economic Light Gauge Steel House / Fast Installation Modern Prefabricated Tiny Cabins

Basic Information
Place of Origin: China
Brand Name: Sussman
Certification: CE; ISO
Model Number: SU-LV
Minimum Order Quantity: 50 square meters
Price: USD180-USD250 per square meter
Packaging Details: plastic film
Supply Ability: 500 square meter per week
Type: Prefab Modern Villa Prefabricated Tiny House Rain System Pipe: Standard Specification China Standard PVC
Windows: Aluminum Alloy Windows Main Structure: Light Gauge Steel
Color: Customized Life Span: 99Yrs
High Light:

modern steel structure homes

,

modern prefab modular homes

Economic Fast Installation Prefab Modern Villa Prefabricated Tiny House



[Foundation]

The main forms of foundation are pile foundation, strip foundation, box foundation, light steel keel pile foundation and strip foundation. (Please contact us for the details of the basic part, and we will arrange technical staff to answer for you.)

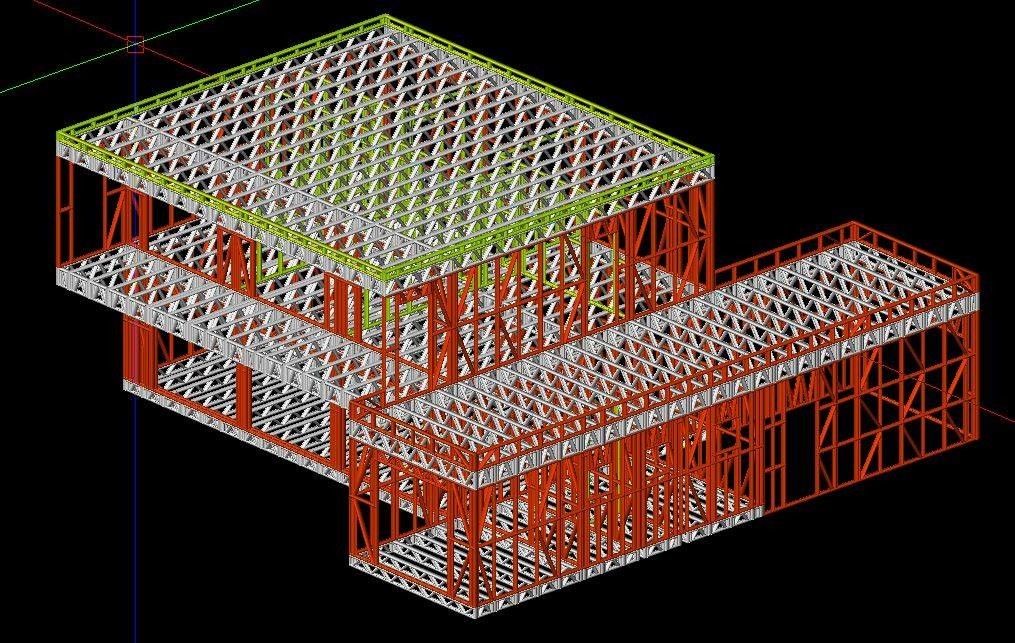

[Subject structure]

The steel structure system adopts Q345 steel, 1.0-1.8 mm thin-walled light steel keel system, and the structural connectors adopt 2.0 mm thick galvanized steel firmware.



[Roof structure]

The roof is roof truss + 12 mm thick OSB + waterproof membrane + asphalt tile / coloured stone tile / glazed tile, etc.



[Wall structure]

According to different climate and floor requirements, the main components of the wall are light steel keel + cement fiberboard / silicate cover board / gypsum board / etc. + the external wall is cement hanging board + 50xps + waterproof + 9mmOSB + steel structure + glass wool + 12 gypsum board.



[Interior wall structure]

Most of the interior partitions are 12 mm gypsum board + steel structure + 12 mm gypsum board. Some waterproof parts are made of calcium silicate board, cement board and PVC fastener board.



[Floor structure]

Most floor slabs are made of light steel truss, sound insulation cotton, OSB substrate, panel/carpet, etc. C+U section steel is used in the parts with small span.



[doors and windows]

The outer door is metal anti-theft door or paint-free solid wood door, the inner door is composite door or paint-free door (base price excluded), the toilet door is glass door or plastic-steel door (base price excluded); the windows are all aluminum alloy windows (if there are special needs and contact with us, such as hollow glass, insulating glass, etc.)



[design parameters]

Roof live load: 0.5kn/m2

Wind load: 30m-40m/s

Seismic Intensity: 9 Degrees

Service life: 50 years


Item Name tiny house on wheels
Size As requested
Roof Color steel plate,EPS,rock wool ,fiber glass sandwich panel
Wall panel 50/75mm EPS/Rock wool/PU sandwich panel with double-sided 0.4mm PPGI
Windows Plastic steel/Aluminum alloy double-layer hollow glass window
Door wooden door or iron security door ,PVC or Aluminum Alloy
Column and Beam Hot rooled H section ,I section Galvanized or painting
Purlin C-Section and Z-section
Steel structure 2.0~4.0mm galvanized steel structure
Floor 18mm multi-plywood/cement-fibre board
Bathroom Floor PVC floor/ceramic tile
Bathroom shower,seated toilet,wash basin,towel rack,mirror, paper dispenser
Kitchen sink with cupboard(PVC panel),stainless steel double sink,tap
Water pipe PPR and PVC water supply and drainage pipe with fittings
Electric system switch,socket,lamp light,waterproof socket,distribution box.
Accessories Paint,glass cement,floor nail,blind rivets etc.
