| Place of Origin: | China |
|---|---|
| Brand Name: | Sussman |
| Certification: | CE; ISO |
| Model Number: | SU-TH12 |
| Minimum Order Quantity: | 50 square meters |
| Price: | USD180-USD250 per square meter |
| Packaging Details: | plastic film |
| Supply Ability: | 500 square meter per week |
| Name: | Prefabricated Light Steel Frame House / Luxury Prefab Villa | Light Steel Frame: | 89*41*11*1.0mm Framcad |
|---|---|---|---|
| Insulation: | 100mm Glass Wool | Sound Insulation: | 38-46 DB |
| Anti-earthquake: | 8 Grade | Fire Rated Partition: | 4 Hours |
| High Light: | modern prefab tiny house,modular tiny house |
||

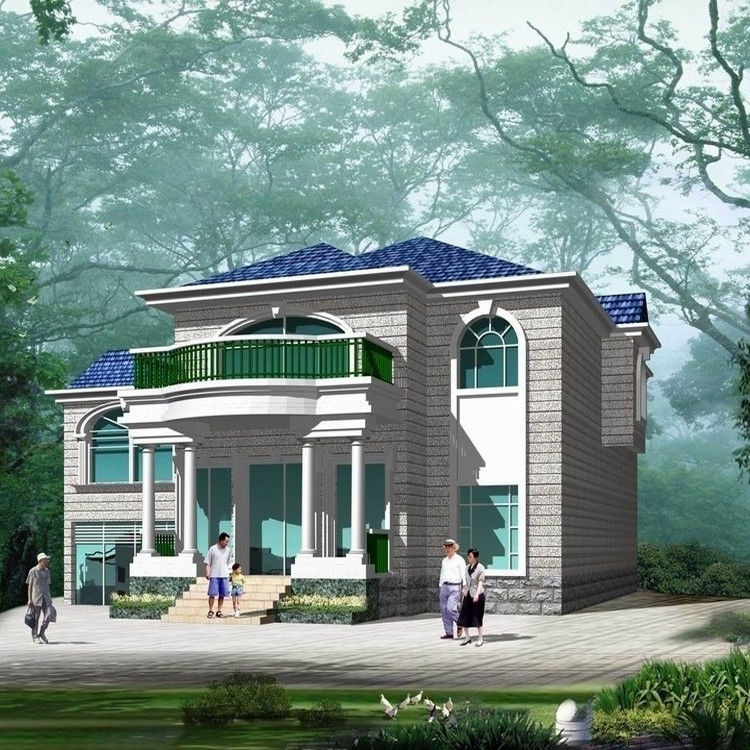

3 Bedrooms Customized High Standard Low Cost Prefab Modern Resort Villa House 67.5 Square Meter
Director Light gauge steel structures have many of the advantages of light wood framed structures:They are light, and allow quick building without heavy tools or equipment.
Every component can easily be carried by hand - a house is like a carpentry job on a larger scale. The main tool is a light, handled screw gun. Since steel is strong, LGS structures are lighter than wood framed structures of equivalent strength. Their higher strength allows greater spacing between members when compared to wood frame construction: about 24" (600mm) for LGS vs. about 16" or 20" (400 or 500mm) for wood. Fewer members translates to quicker construction times.
It is able to shape itself to any form, and can be clad and insulated with a wide range of materials.
| Main Material For prefab house | |
| 1.Wall structure frame | Ligth steel frame |
| 2.Exterior wall | Light weight eps cement panel / rockwool insulation material |
| 3.Exterior wall decorative board | brick texture Wall/PU sandwich panel |
| 4.Interior wall | Wood-bamboo composite wall panel |
| 5.Interior wall Decorative material | Emulsion Paint,putty powder / tile/ bamboo fiber board |
| 6.Panel used in Kitchen & toilet | WPC Intergrated composite wall panel |
| 7. Corner post | Square tube |
| 8.Wall Pillar | Rectangular tube |
| 9.Steel roof truss | "C"steel / light steel structure |
| 10.Roof panel | Light weight pes cement wall panel/color steel sandwich panel |
| 11.Roof tile | Strip slate / glazed tile / asphalt tile |
| 12.Ceiling | PVC panel / Gypsum board/ bamboo-wood composite panel |
| 13.Floor lateral support | Round steel /“C” steel |
| 14. Floor grider | "H"steel |
| 15. Floor panel | Light weight eps cement wall panel + OSB board/concret board / glass magnesium board |
| 16.Floor decorative board | Tile/composite wooden floor panel |
| 17.Toilet ground tile | Tile/plastic composite tile |
