Aluminium Siding Wall 120mm 20m2 Light Gauge Steel House

Basic Information
Place of Origin: China
Brand Name: Sussman
Certification: CE; ISO
Model Number: SU-LV
Minimum Order Quantity: 200 square meters
Price: USD180-USD250 per square meter
Packaging Details: plastic film
Supply Ability: 500 square meter per week
Type: Light Steel Villa Size: Standard Or Customized
Material: Galvanized Steel Frame, Concreat Panel Structure: Light Steel
Wall Thickness: 120mm Structure Bord: OSB Board
High Light:

20m2 Light Gauge Steel House

,

120mm Light Gauge Steel House

,

20m2 light gauge steel framing

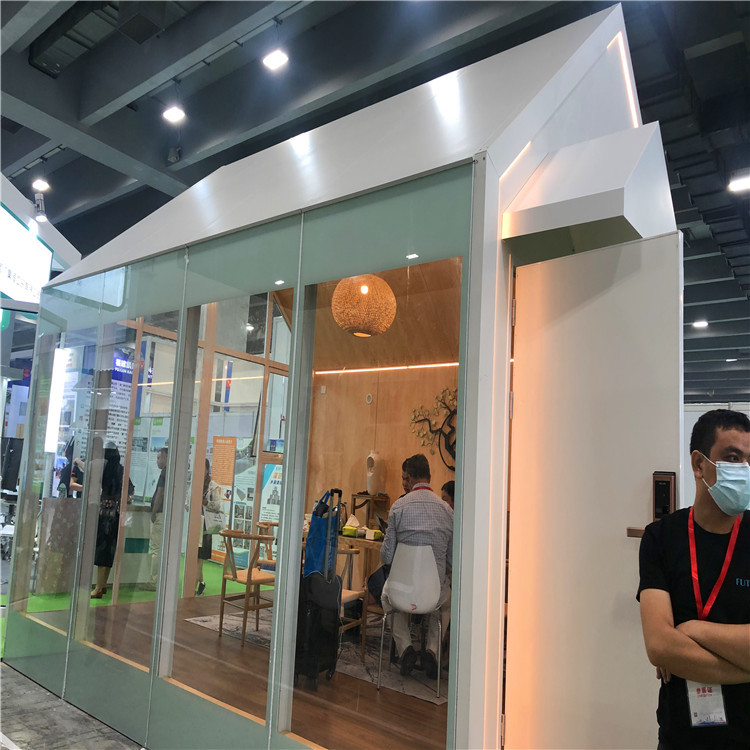

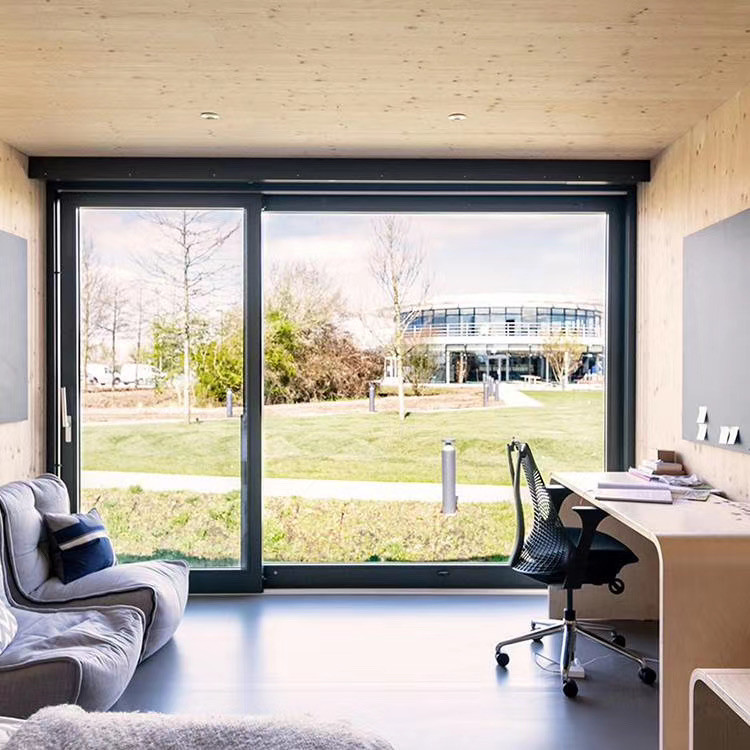

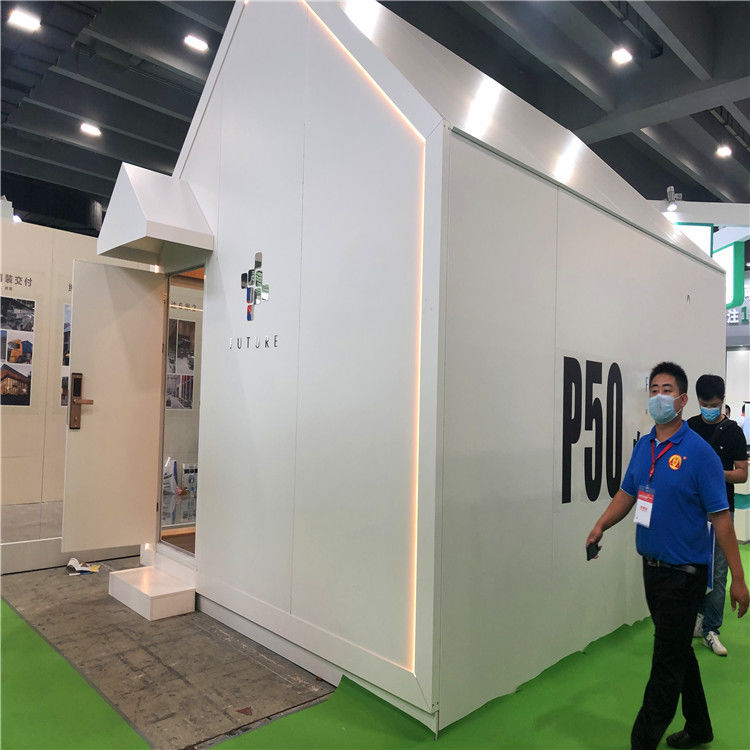

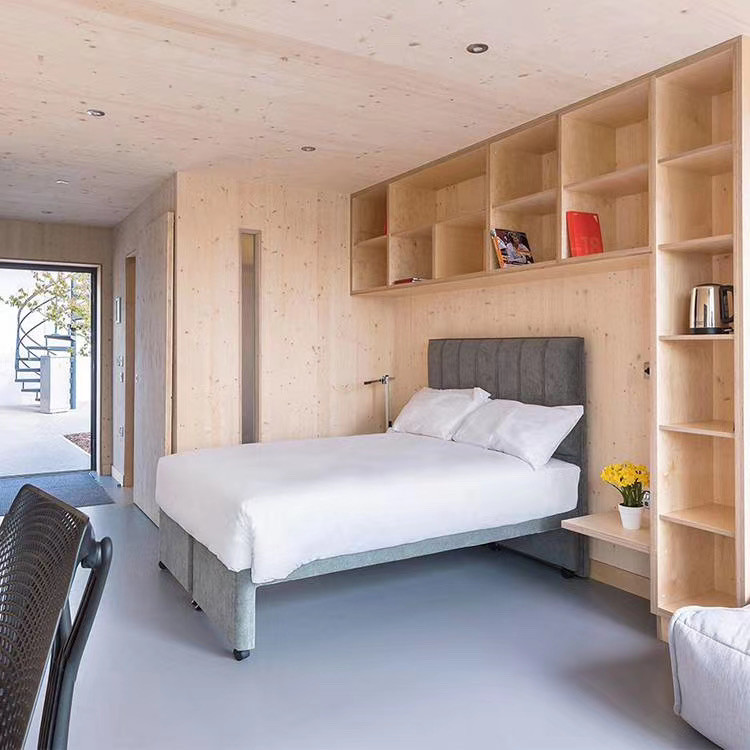

20m2 Foldable Aluminium Siding Wall Light Steel Villa Tiny House with French Window



Integrated house: It consists of structural system, ground system, floor system, wall system, and roof system. Each part is with several unit modules that complete the manufacturing in factory. Integrated house is assembled by unit modules on the site.



Light gauge modular house: To build a versatile, energy-saving and environmentally friendly modular house, we use cold-rolled hot-dip galvanized or aluminum zinc steel as main structure, combined with insulation materials such as heat insulation, sound insulation, waterproofing, fire prevention, etc., All components are produced in the factory, and assemble in site. This realize all parts prefabricated in the factory and the on-site assembly. This is mature modular housing system, and also the future development direction.



Stand-column 100x100x2.5 square steel (Galvanized)
Ring beam 100x100x2.5 square steel (Galvanized)
Roof beam 10#C steel (Thk:2.0mm)
Roof purlin Sandwich panel door/steel door
Base-cross beam 8#C steel+L40 angle brance (Thk:2.5mm Galvanized)
Base-purlin 12#C steel Thk:2.0mm
Base board 20mm Cement board
Interior wall

8+6mm Calcium silicate board+Steel keel+8+6mm

Calcium silicate board

Roof Steel sandwich panel+asphalt shingles/color steel glazed tile
Outside Door Anti-theft door/Metal door
Interior Door Complex wooden door/PVC door
Window Aluminum sliding window with single glass
Electricity Electricity General lighting
Floor 800*800mm Polished tile
Ceiling PVC ceiling,plaster ceiling,calcium silicate board
Exterior wall

8mm Cladding+8mm Calcium silicate board+Steel keel

8+6mm Calcium silicate board+10mm rock wool insulation

Aluminium Siding Wall 120mm 20m2 Light Gauge Steel House 0

Aluminium Siding Wall 120mm 20m2 Light Gauge Steel House 1Aluminium Siding Wall 120mm 20m2 Light Gauge Steel House 2
