| Place of Origin: | China |
|---|---|
| Brand Name: | Sussman |
| Certification: | CE; ISO |
| Model Number: | SU-CH |
| Minimum Order Quantity: | 1 set |
| Price: | USD1500 per set |
| Packaging Details: | plastic film |
| Supply Ability: | 50 sets per day |
| Product Type: | Container Houses | Size: | 20FT 40FT |
|---|---|---|---|
| Accessories: | Gal,Tapping Screw,Rivet,Bolt And Sealant | Window: | PVC Window Or Plastic Steel Window |
| Wall: | EPS, Rock Wool,PU Sandwich Panel | Application: | HOTEL, Villa, APARTMENT, OFFICE BUILDING |
| High Light: | Movable Flat Pack Containers,Flat Pack Containers 20ft,Flat Pack Containers 40ft |
||
Flat Pack 20ft 40ft Prefabricated Portable Movable Container House Office
1. Movable Container House Description
A modular portable container house is designed according to specifications of the shipping container exactly. It is made of prefab light steel as frame and sandwich panel for wall and roof, then facilitated with windows, doors, flooring, ceiling, and other additional accessories. They are fitted with power and lighting and can be accessorized to suit your requirements.
2. Feature For Movable Container House
* Convenient and various transportation, can be transported as a shipping container, or flat packed.
* Easily removed for short distance, can be relocated without disassembling.
* Tough steel structure improve wind resistant, and seismic resistant.
* Sandwich panel for wall and roof keep good insulation, soundproof, waterproof.
* Flexible designs as per your preference.
* Environment friendly. No waste to be discarded.
* House parts can be separately according to your requirements.
* Little requirements on ground base. Being tough and flat is OK.
3. The usage for the Movable Container House
1. Used as the temporary house at the construction site, such as the temporary house fot the project manager, office of inspectors and so on.
2. Used as the temporary house for the fieldwork such as mobile office and dormitory for outdoor survey and construction.
3. Used as the temporary emergency house, mobile military headquarters, mobile headquarters for disaster area. etc.
4. Specification For The Movable Container House
| specification:6055/2435/2896mm standard container | Roof shape | Flat roof with internal water draining design |
| storey | less than 3 storeys | |
| Design data | Designed service life | 20 years |
| floor live load | 2.0KN/m2 | |
| roof live load | 1.0KN/m2 | |
| wind load | 0.6KN/m2 | |
| The resistant earthquake grade | 8 degree | |
| Recommending function | Accomondation, office, stores, shop, meeting room etc | |
| structure | Light steel structure | Using Q235 material. |
| Design and producing | Professional software to do structure designing and calculating, Fully automatic CNC equipment manufacturing, | |
| wall | thickness | 50/75/100mm thickness color glasswool / rockwool/PUsandwich panel |
| insolation | 50/75/100mm thick sandwich panel | |
| Roof | roof panel | 0.45mm thickness galvanized color steel sheet |
| insulation | 100mm thick glass wool felt, with single foil | |
| top ceiling | 0.5mm thickness galvanized color steel sheet | |
| Floor | Floor top | 2.0mm thick PVC flooring |
| Base | 19mm fiber cement board | |
| insulation | 100mm thickness glass wool, with aluminum foil. | |
| Door | specification | W X H=840*2035 |
| material | steel door | |
| Window | specification | W X H=800*1000/800*500 |
| Frame material | UPVC, 60 series | |
| Electrical | Can supply national standard, american standard, european standard, austrilian standard electrical applicans according customers needs. | |
| Socket | 4 five holes socket 10A, 1 three holes AC socket 16A, GB | |
| Electric wire | BVVB-2.5mm² / BVVB-4mm² | |
| Voltage | 220/380V | |
| breaker | High breaking circult breaker | |
| Water | Standard construction, equipment and fittings accord with GH | |
| inlet ipe | PPR | |
| outlet pipe | UPVC | |
5. Global Market
Products have been delivered to Africa: Sudan, Kenya, South Africa; America: Canada, USA, Colombia, Peru, Chile, Uruguay; Oceania: Australia, New Zealand, Nauru; Europe: UK, France, Germany, Russia; Asia: Thailand, Philippine, Mongolia

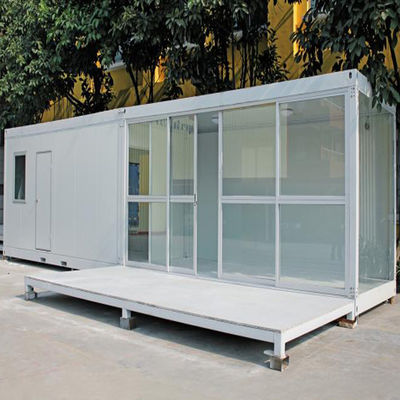

6. The photos
