| Place of Origin: | China |
|---|---|
| Brand Name: | Sussman |
| Certification: | CE; ISO |
| Model Number: | SU-CH008 |
| Minimum Order Quantity: | One 20 GP |
| Price: | USD4500 per peice |
| Packaging Details: | plastic film |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, D/P, T/T, D/A |
| Supply Ability: | 100 pieces per month |
| Size: | 20ft,40ft | Floor: | 16mm MgO Panel, With 2mm Vinly Sheet |
|---|---|---|---|
| Name: | Container Homes,prefab Portable Shipping Container Solar Luxury Kit Homes | Roof: | Corrugated Color Steel Sheet+sandwich Panel |
| Window: | Aluminum Alloy Window | Application: | Office,house,Steel Fabricated House,villa,Prefab Buildings Etc |
| High Light: | 40HQ modular container homes,40HQ Prefab Shipping Container Homes,EPS premade shipping container homes |
||
One Bedroom Modular Mobile Prefabricated Shipping Housing Living Container Houses
Container homes is a standard mobile house. Solid structure makes this house resist up to 120KM/H wind speed. Flat packing and loading into 40 foot containers when shipping makes goods safe and easy to transport and lay in at local site.
With the character of free moving and fast installation, Modular house is highly favorite by construction companies, mining companies, road & bridge companies all over the world.
| Container Size | 20ft,40ft,40HQ |
| Color | Optional |
| Loading | Can be shipping as ISO container |
| Structure | Steel base: Q235, hot galvanized. 2mm power coated steel as main beam and 1.5mm steel as second beam |
| Column: 3mm steel, Q235, hot galvanized, power coated | |
| Steel corner with hole: Q235, hot galvanized, power coated | |
| Roof system: Q235, hot galvanized. 3mm power coated steel as main beam and 1.5 mm steel as second beam. | |
| Wall panel | 50mm Glass wool sandwich panel/EPS |
| Roof | color steel sheet as roof sheet+40mm glass wool insulation+ ceiling |
| Floor | 16mm MgO Panel, with 2mm vinly sheet |
| Window | Alu Sliding window |
| Size:as requested | |
| Door | Steel door, with handle lock and keys. |
| External size:as requested | |
| Electrical system |
1 electrical distribution, 2 industrial plug, 2 lights, 2 switches, 3 sockets (with A/C socket), electrical wire (220V/50Hz) |
| Temperature | suitable temperature.-50°C~+50°C |
| Others | Furniture and appliance are customized-made to your requirements(additional cost) |
| Floor load | 0.5KN/square meter |
| Roof load | 1.5KN/square meter |
| Wind resistance | Grade 11(wind speed≤111.5km/h) |

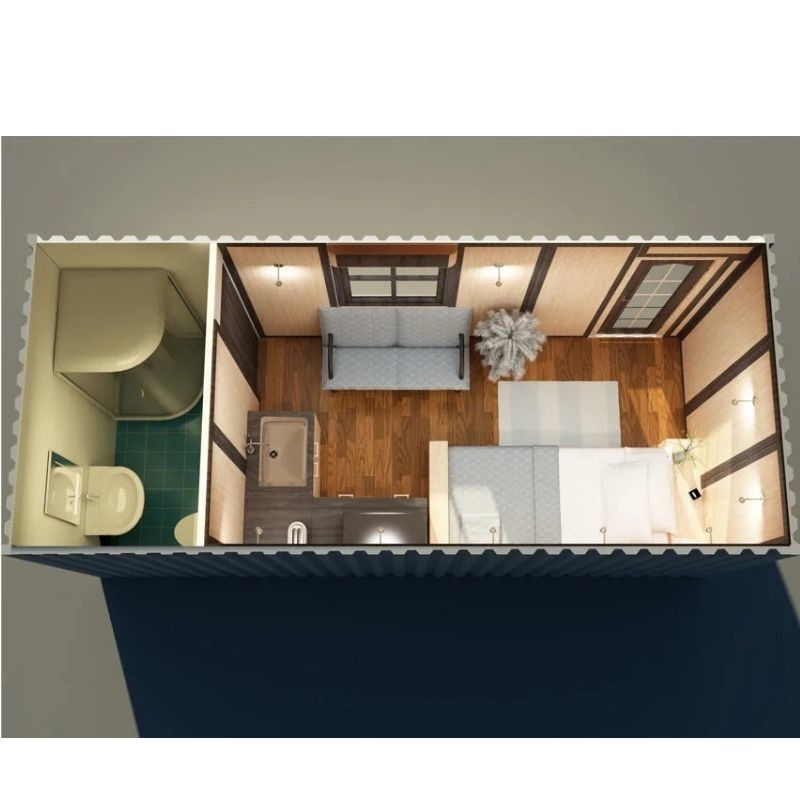

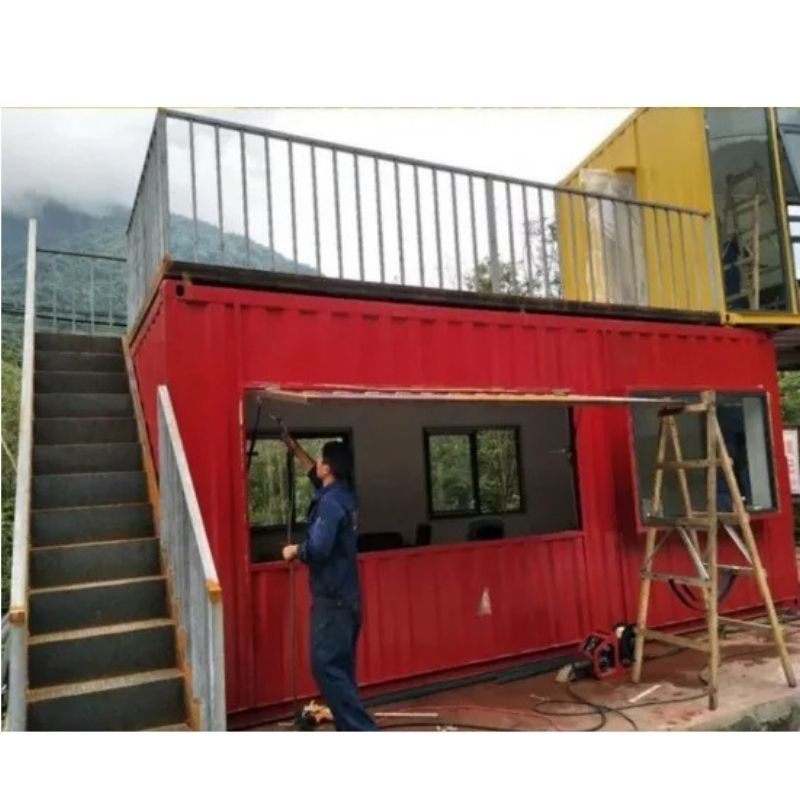

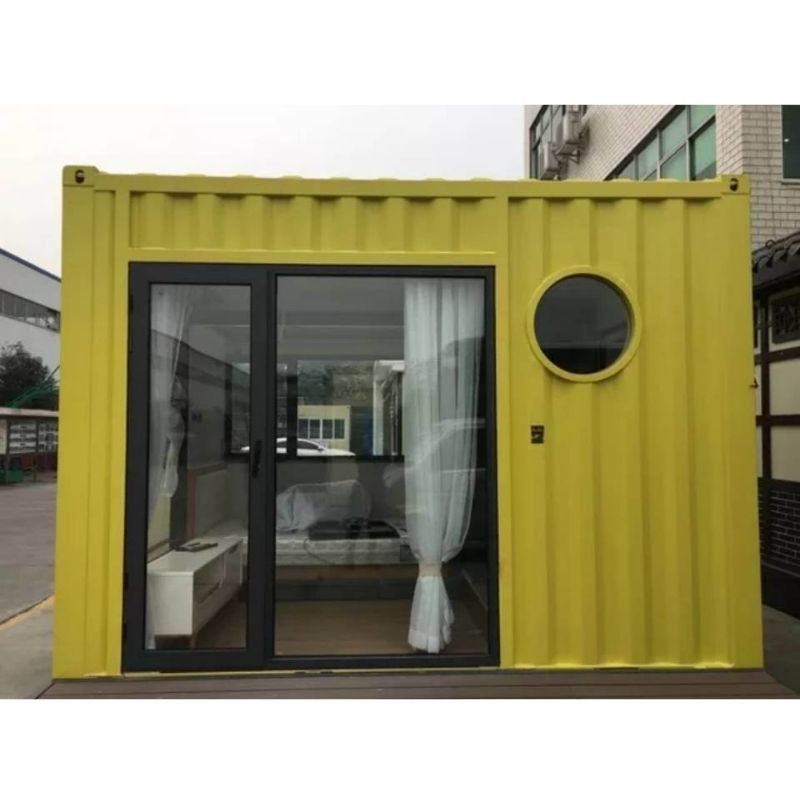

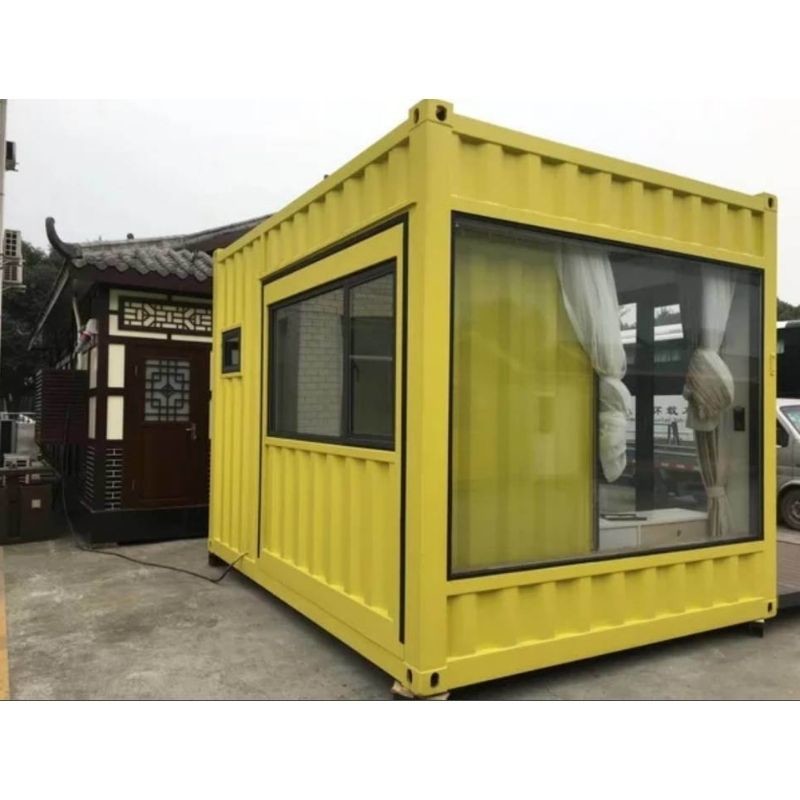

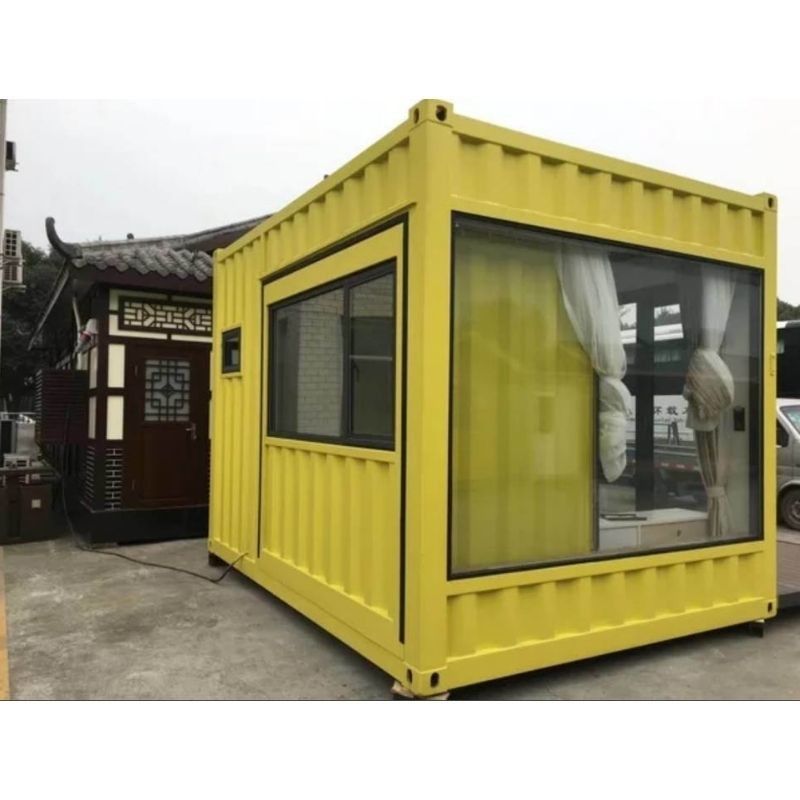

Detail Images
Sussman Service:
1. The house is made of light steel structure and rustproof color steel sandwich panel as wall and roof;
2. The size and layout can be designed as per customers' requirements for its flexible dimension;
3. The house has waterproof structure and heating insulation material, such as EPS, Rock wool or PU Panels interlock easily to form a complete thermally efficient shell;
4. Two kinds of flooring system are available, one is steel chassis floor, the other is concrete foundation;
5. One 40'HQ container can load about 160m2 considering 75mm thickness panel for roof and wall;
6. The house can resist heavy wind load of 0.5KN/m2 and 7-8 degree seismic intensity.
