|Type:||Light Steel Frame Prefabricated Villa||Installation:||Provide Installation Video|
|Drawing:||Light Steel Villa Drawing||Life Span:||70 Years|
mobile prefabricated houses,
custom built prefab homes

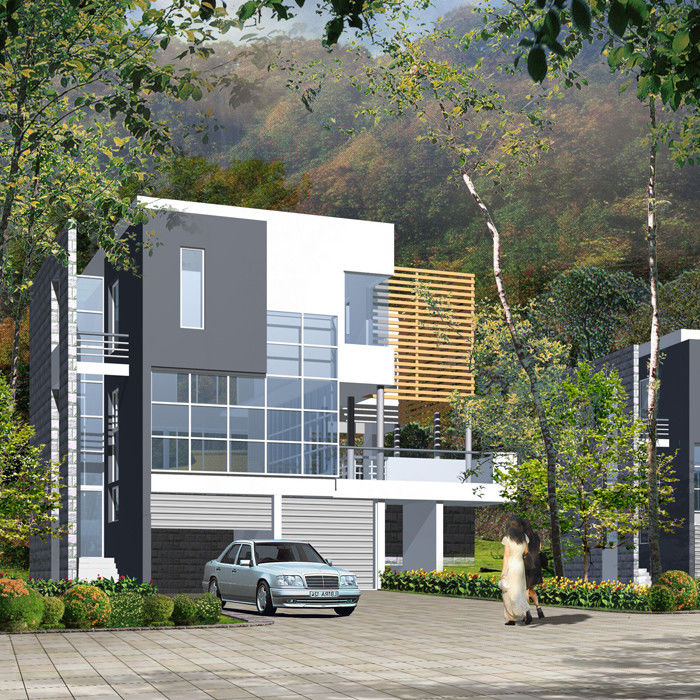

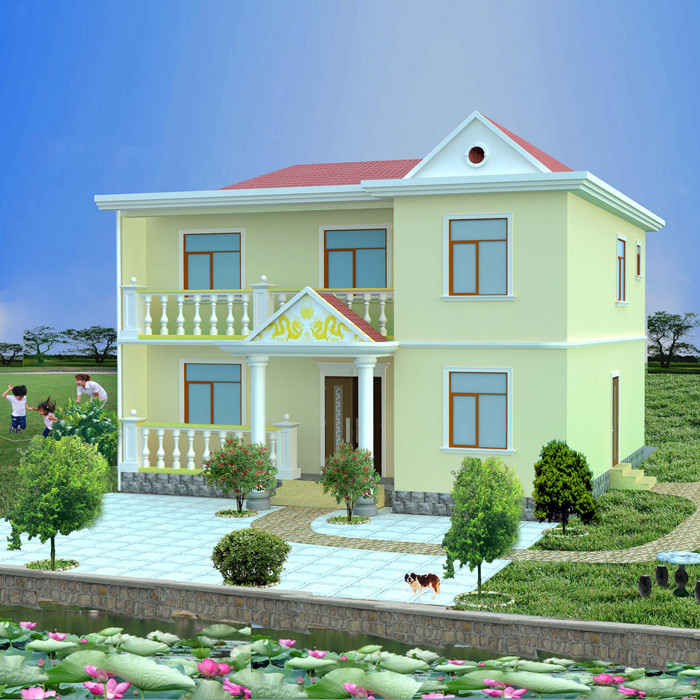

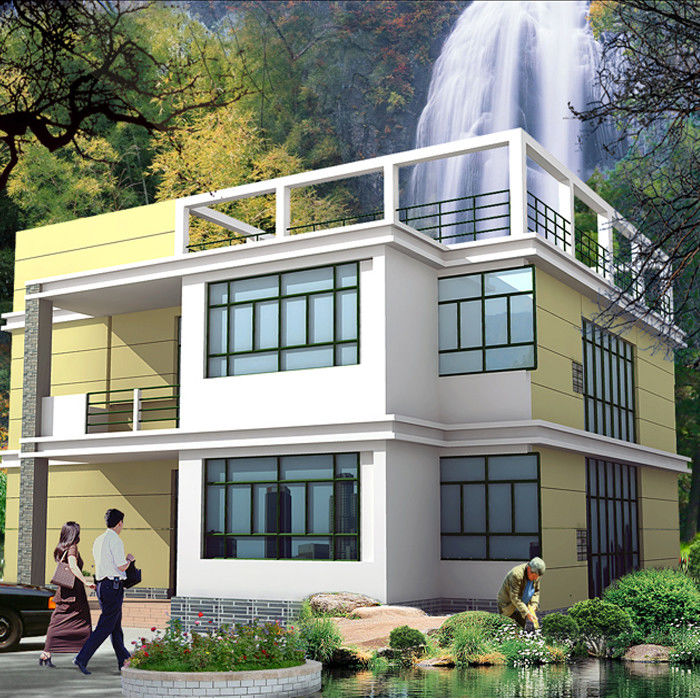

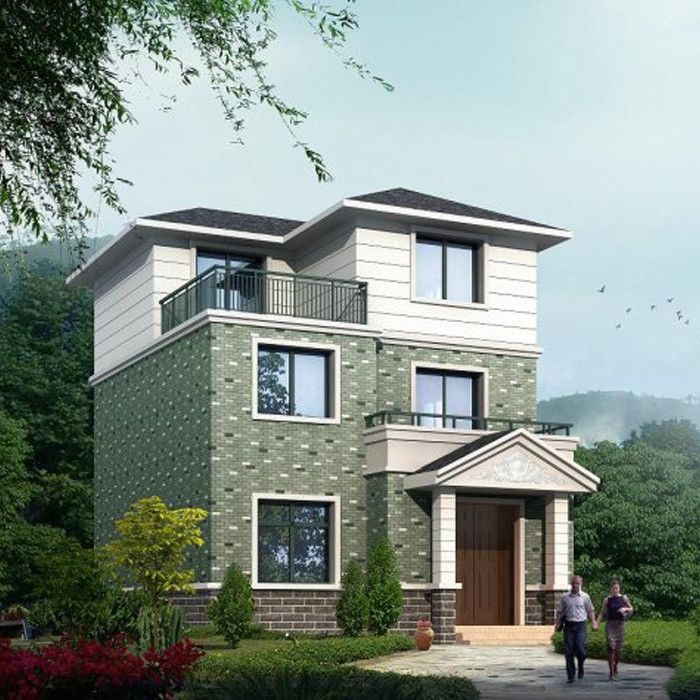

Good Design Steel Frame Granny Villa/Luxury Light Steel Frame Villa/China Prefabricated Villa
Prefab steel structure with panel is widely used as large factory, warehouse, workshops, storage, stadiums, offices, accommodation and other buildings. Steel structure building with ALC panel is a new type of building structure system, which is formed by the main steel framework linking up H-section, Z-section, and U-section steel components, roof and walls using a variety of panels and other components such as windows and doors.
|Major Structure||Major Structure||Steel Frame||HANGANG Chinese Standard,G550-Z275 C-shaped Steel||According to design requirements|
|Consumables||Screw,bent parts,L parts,etc||According to design requirements|
|Roof||Deco Layer||Fiberglass reinforcement asphalt shingle||Standard 3mm thick|
|Ceiling Insulation||Glass wool blanket||100mm thick,18kg/m³|
|Structural Layer||Oriented Strand Board||1220*2440*12,waterproof type|
|Waterproof Layer||Waterproof roll||Two-sided Pressure Sensitive Adbesive SBS Sticky Roll|
|Cornice||Oriented Strand Board||1220*2440*12,waterproof type|
|PVC cornice closure plate||white|
|Outer Wall||Outer Deco Layer||Vantilation Shutters||Vantilation|
|Fiber-cement stack plate||3600*210*8|
|Filled Layer||Glass wool blanket||100mm thick,18kg/m³|
|Insulating Layer||XPS extruded polystyrene board||Grade B1,1200*600*50|
|Rough Groud||Rough ground||antiseptic treatment,40*50|
|moisture proffing course||Lamininating films||0.35mm,unidirection|
|Structural Layer||Oriented Strand Board||1220*2440*9,|
|Interior Wall||Dry Area||Paper double drywall||1200*2400*9.5,|
|Wet Area||Monolayer cement fiber board||1200*2400*10|
|Floor||Floor||Oriented Strand Board||1220*2440*18,|
|Door & Window||Entry Door||Steel Security Doors||900*2100|
|Window||Aluminum Alloy Window||Double Glass Insulation Window|
1. Excellent seismic performance. The overall structure is firm, light weight and uniform load distribution.
2, good insulation performance. The multi-layer board is filled with insulation material, and the insulation performance is improved by 65% compared with the brick-concrete construction method.
3. The construction period is short. The prefabrication of the materials is done at the factory and the installation takes only 30 days and can be carried out all year round.
4. The overall cost is low.
